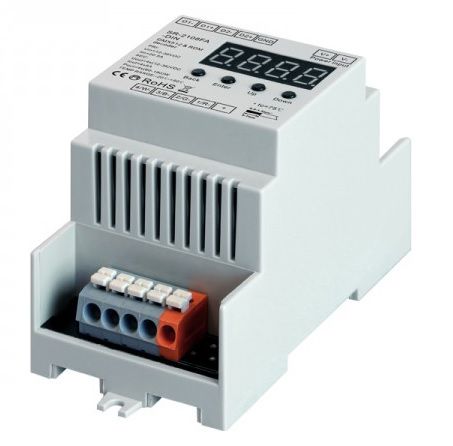

LED controller SR-2108FB-DIN, DMX512, RDM, +standalone, 12-36V DC, 4x5A, DIN, Sunricher
Product Code: SR-2108FA-DIN
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0.142 kg.
Brand
Features
- DIN rail mounted DMX, RDM controller
- Compatible with SR-2811DMX,SR-2201DMX,SR-2812,SR-2816 and any good quality DMX Master, DMX512(1990) standard protocol
- Total 4 PWM output channels, common anode, DMX channel quantity 1Ch, 4Ch settable
- Visible numeric digital display operation interface with a variety of features selection
- 5A 4 channels constant voltage output
- Easy wiring terminals without screws
- RDM bi-directional communication function
- Enable DMX512 master console to detect decoder, display decoder information and set DMX address
- PWM output high frequency 16bit and low frequency 8bit switchable, default setting is 16bit
- 10 levels of PWM output frequency optional from 500Hz - 35KHz, default is 1KHz
- Decoding modes optional, enable to adjust brightness of each channel, master brightness of all channels and strobe effects, default mode is dp1.1
- Gamma ray curves value adjustable from 0.1 - 9.9, logarithmic dimming and linear dimming optional
Technical data
| Input Voltage | 12-36VDC |
| Output current | 4x5A |
| Output power | 4x(60-180)W |
| Output type | Constant voltage |
| Measurements | 65 x 110 x 53mm |
Useful information
Specifications
SKU
380577
Weight
0.142 kg.
Height, mm
65
Input voltage DC from, V
12
Brand
Connection type
Sunricher wired
Width, mm
53
Current, A
5
Control
DMX
Control current, mA
Sunricher wired
Product code
SR-2108FA-DIN
Input voltage DC to, V
36
Depth, mm
110
