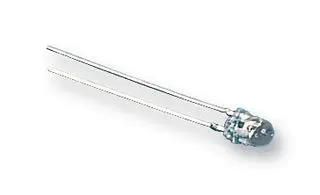

LED, 3MM, BLUE
Product Code: HLMP-KB45-A0000
Brand
More similar products
Delivery terms
2024-07-24 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 24178 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Specifications
Supplier product description
LED, 3MM, BLUE; LED Colour:Blue; LED Mounting:Through Hole; LED Case Size:T-1 (3mm); Forward Current If:20mA; Forward Voltage:3.2V; Wavelength Typ:470nm; Luminous Intensity:30mcd; Viewing Angle:40┬░; Lens Shape:Round; Product Range:-; Automotive Qualification Standard:-; MSL:-; SVHC:No SVHC (27-Jun-2018); Bulb Size:T-1 (3mm); Current If Luminous Intensity:20mA; Dominant Wavelength:462nm; External Diameter:3.18mm; External Length / Height:4.7mm; Forward Current If Max:20mA; Forward Voltage VF Max:4V; Input Voltage Max:5V; Input Voltage Min:4V; LED / Lamp Size:3mm / T-1; LED Type:Standard; Lead Cross-section Depth:0.45mm; Lead Cross-section Width:0.45mm; Lead Length:23mm; Lead Spacing:2.54mm; Luminous Intensity @ If Min:25mcd; Luminous Intensity Typ:45mcd; No. of Pins:2Pins; Operating Temperature Max:80┬░C; Operating Temperature Min:-20┬░C; Operating Temperature Range:-20┬░C to +80┬░C; PIV Max:5V; Peak Wavelength:426nm
Useful information
Supplier parameters
Product code
HLMP-KB45-A0000
Brand
AVAGO TECHNOLOGIES
Supplier's product code
1003308
Product ID
U-585577
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
