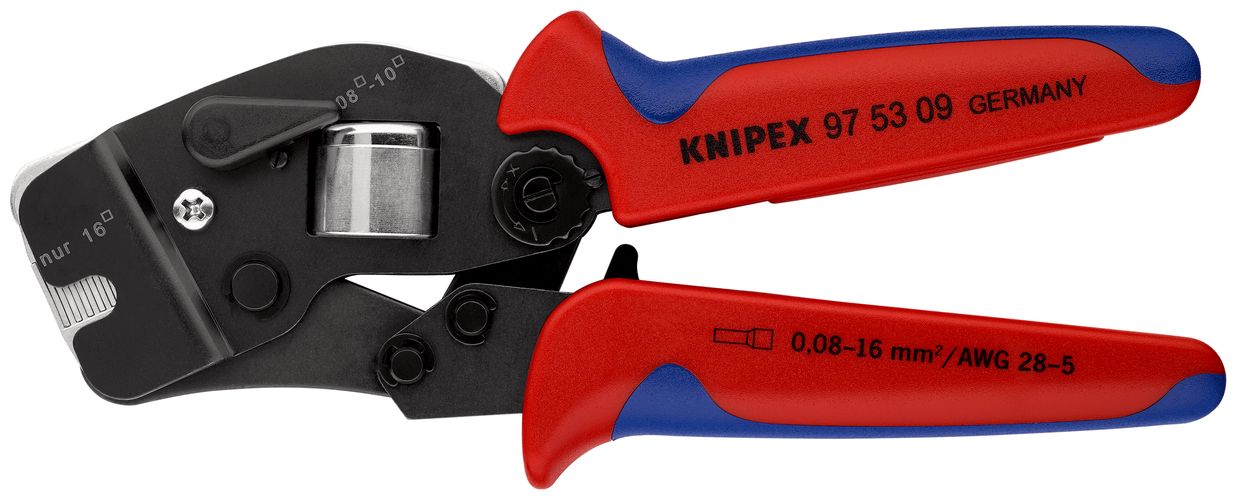

KNIPEX 97 53 09 SB Self-Adjusting Crimping Pliers for wire ferrules with front loading with multi-component grips burnished 190 mm
Product Code: 97 53 09 SB
Delivery terms
2024-12-12 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
- compression from 0.08 - 10.0 and 16.0 mm² in one profile
- with selector lever for setting the crimping area either to 0.08 - 10 mm² or 16 mm²
- also suitable for twin wire ferrules up to 2 x 10 mm², but smaller than Ø 6.6 mm (e.g. KNIPEX art. no. 97 99 377)
- for crimping wire ferrules according to DIN 46228 parts 1 + 4
- self-adjusting adaptation to the desired wire ferrule size: no wrong crimps caused by using the wrong die
- Frontal insertion of the wire ferrules into the pliers
- Repetitive, high crimping quality due to ratchet mechanism (unlockable)
- tools have been set precisely (calibrated) in the factory
- optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- handy shape and low weight provide high operation comfort
- Approved crimping according to UL in conjunction with KNIPEX wire ferrules 97 99 330 - 399
Useful information
Supplier parameters
Supplier's product code
97 53 09 SB
Product ID
U-1718982
Product code
97 53 09 SB
Height
26 mm
Length
271 mm
Product Group
Self-Adjusting Crimping Pliers for wire ferrules, with front loading
Weight
480 g
Width
115 mm
Brand
KNIPEX
