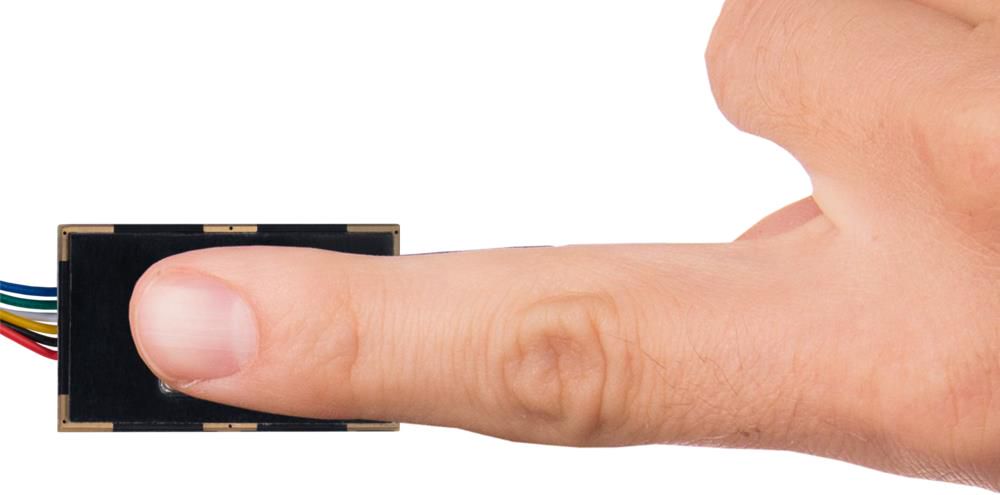

Joy-iT R301T fingerprint sensor module

Joy-iT R301T fingerprint sensor module

This Sensor module is capable of image collection and algorithm calculation due to this integrated chip. Another remark-able function of the sensor is, that it can recognize the fingerprint in different conditions, for example humidity, light texture or changes of the skin. This offers a very wide range of possible applications to secure locks and doors among other. The chip can send data via UART, TTL serial and USB the to the connected controller.

Technical data:

Model: JP2000 Sensor

Chip: 32 Bit ARM Cortex-M3

Chip storage: 96 kB RAM, 1 MB Flash

Power supply: 4,2 - 6,0 V

Working current: Typical: 40 mA / Peak: 50 mA

Logic level: 3.3 V - TTL Logic

Fingerprint storage capacity: 1700 Prints

Matching mode: 1:N Identification 1:1 Verification

Adjustable Security level: 1 - 5 levels (default security level: 3)

FAR: < 0.001 % (on security level 3)

FRR: < 0.1 % (on security level 3)

Response Time: Pre-treatment: < 0.45s Match: <1.5 s

Baud rate support: 9600 - 921600

UART Communication: No parity, Stop Bit: 1

Environment temperature: -10 - 50°C
