Shelly Plus 1

Opens image in full screenOpen

Device identification

• Device name: Shelly Plus 1

• Device model: SNSW-001X16EU

• Device SSID: ShellyPlus1-XXXXXX

Short description

Shelly Plus 1 is a small form factor smart switch with potential-free contacts, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.

Shelly Plus 1 can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and the Internet.

It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space.

Shelly Plus 1 has embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings.

Main applications

• Residential

• MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)

• Light commercial (small office buildings, small retail/restaurant/gas station, etc.)

• Government/municipal

• University/college

Integrations

• Google

• Samsung SmartThings

• Alexa

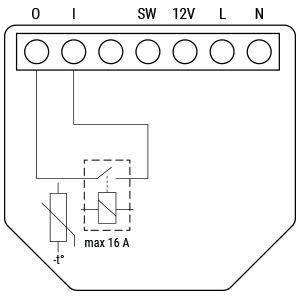

Simplified internal schematics

Opens image in full screenOpen

Device electrical interfaces

Inputs

• 1 switch/button input on screw terminal: SW

• 1 potential-free contacts relay input on screw terminal: I

• 3 power supply inputs on screw terminals: N (+), L (Ʇ) and 12V

Outputs

• 1 potential-free contacts relay output on screw terminal: O

Add-on interface

• Shelly proprietary serial interface

Opens image in full screenOpen

⚠CAUTION! High voltage on the add-on interface when the Device is powered!

Connectivity

• Wi-Fi

• Bluetooth

Safety features

• Overheating protection

Supported load types

• Resistive (incandescent bulbs, heating devices)

• Capacitive (capacitor banks, electronic equipment, motor start capacitors)

• Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air-conditioners)

User interface

Inputs

One (control) button

• Press and hold for 5 seconds to enable Device access point and Bluetooth connection.

• Press and hold for 10 seconds to factory reset the Device.

Outputs

LED (red) indication

• AP (Access Point) enabled and Wi-Fi disabled:
  1 second ON / 1 second OFF

Visualization

• Wi-Fi enabled, but not connected to a Wi-Fi network:
  1 second ON / 3 seconds OFF

Visualization

• Connected to a Wi-Fi network:
  Constantly ON

Visualization

• Cloud enabled, but not connected:
  1 second ON /5 seconds OFF

Visualization

• Connected to Shelly Cloud:
  Constantly ON

Visualization

• OTA (Over the Air Update):
  ½ sec ON / ½ second OFF

Visualization

• Button pressed and held for 5 seconds:
  ½ second ON / ½ second OFF

Visualization

• Button presses and held for 10 seconds:
  ¼ second ON / ¼ second OFF

Visualization

The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one.

Specifications

Enlarges the table by opening it in a full screen dialogOpen

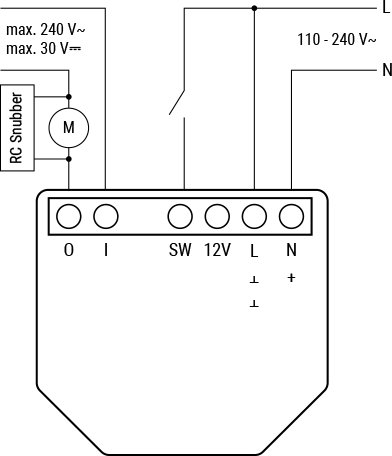

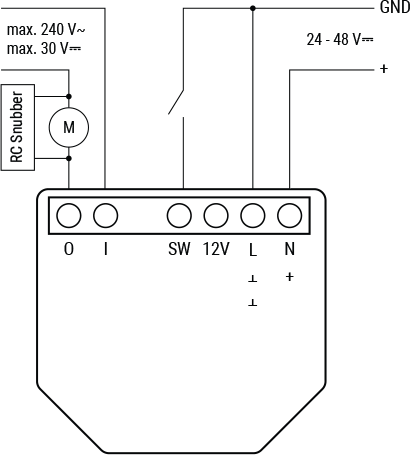

Basic wiring diagrams

Enlarges the table by opening it in a full screen dialogOpen

Legend

Enlarges the table by opening it in a full screen dialogOpen
