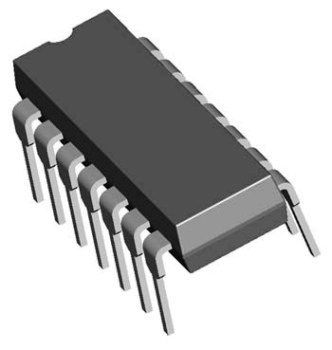

Integrated Circuit SN74AC14N DIP14
The SN74AC14N, also known as a hex Schmitt-trigger inverter, is a digital logic IC from Texas Instruments. This chip is part of the 74AC family, known for its high speed and low power consumption.
Main Parameters and Functions
This integrated circuit contains six independent inverters, each with a Schmitt trigger input. A Schmitt trigger is a type of comparator with hysteresis, meaning it has different thresholds for switching states (positive-going and negative-going). This feature makes the SN74AC14N robust to noisy signals.
- Schmitt Trigger Input: Improves noise immunity.
- Six Inverters: Provides multiple independent inversion functions.
- High-Speed Operation: Suitable for high-frequency applications.
- Low Power Consumption: Energy efficient design.
- Wide Operating Voltage Range: Adaptable to various power supply voltages.
Uses
The SN74AC14N finds applications in various digital systems where signal inversion and noise reduction are crucial. Some common uses include:
- Synchronization of inverted clock signals
- Debouncing switches
- Inverting digital signals
- General-purpose logic functions
Why Choose This Product?
The SN74AC14N offers a combination of speed, noise immunity, and versatility. Its compact DIP14 package makes it easy to integrate into various designs. The proven reliability of Texas Instruments ensures consistent performance.
| Feature | Benefit |
|---|---|
| Schmitt Trigger | Noise Immunity |
| Six Inverters | Multiple Functions |
| High Speed | High-Frequency Applications |
| Low Power | Energy Efficiency |
| Texas Instruments | Reliability and Quality |
