Product description

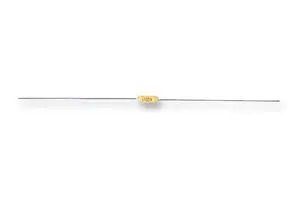

INDUCTOR, 0.68UH, AXIAL
Useful information
Specifications
SKU
U-602160
Product code
SC30R68KT
Supplier product description
INDUCTOR, 0.68UH, AXIAL; Product Range:SC30 Series; Inductance:680nH; DC Current Rating:540mA; DC Resistance Max:0.6ohm; Inductance Tolerance:┬▒ 10%; Self Resonant Frequency Min:275MHz; SVHC:2-Ethoxyethanol (27-Jun-2018); Body Diameter:2.7mm; Colour:Yellow; Current Rating:540mA; External Length / Height:7mm; Inductance Measurement Frequency:25MHz; Inductor Case Style:Axial Leaded; Inductor Type:High Frequency / RF; Lead Diameter:0.6mm; Lead Length:25mm; No. of Pins:2Pins; Q Factor:28; Q Test Frequency:25MHz; Tolerance +:10%; Tolerance -:10%; Voltage Rating V DC:700V; Voltage Rating VAC:700V
Useful information
Supplier parameters
Product code
SC30R68KT
Supplier's product code
1174257
Product ID
U-602160
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
