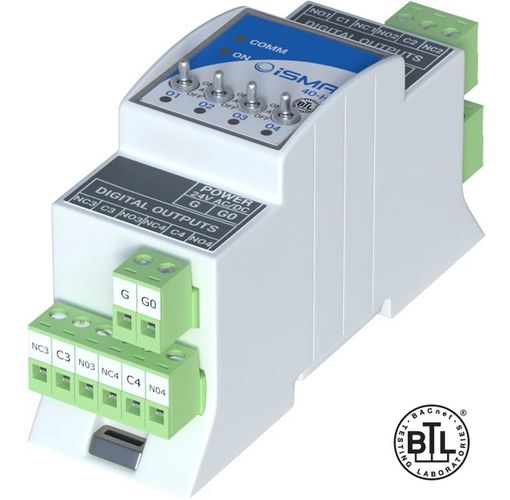

Expansion module iSMA-B-4O-H, 4 relay outputs CO - 8A, 230V AC with manual control, Modbus RTU/ASCII, BACnet MSTP

Product Code: iSMA-B-4O-H
no gallery
no gallery
New!

Price range

AmountPrice with tax (pcs)
1+
386.27386.27
wholesale

Min. qty: 1

Unit: pcs

Total:

386.27

Price when purchased online

Product is on its way to a warehouse. Product will be shipped after receiving to warehouse.

Delivery terms

lemona shop

Pickup in department

Pickup in department For free

Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m. When your order is ready for collection, we will inform you by SMS and e-mail.
IMPORTANT: The office will be closed on 10 January 2025 due to an inventory.

Quantity in shop

Not availableNot available
Central Warehouse
Not availableNot available
Tallinn Office
home delivery

Home delivery

Home delivery

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.

Over €25.00

(Orders up to 1000 kgs)

For free

To €25.00

(Orders up to 1000 kgs)

€4.50

Shipping parcel

Delivery to DPD pickup locations

Delivery to DPD pickup locations

After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.

€3.50

Product description

I/O MINI modules have been designed to complement the MIX series. Depending on the project needs, one of 7 different MINI can be chosen, all inputs and outputs are unified among our products. One feature that makes these two product groups different is hand operating switches, in some applications, it is required. Moreover, all I/O modules have BTL and UL certificates.

Like in the case of the MIX modules with RS485 and IP (1x Ethernet), MINI are factory-equipped with the most popular open communication protocols Modbus (ASCII, RTU, TCP/IP) and BACnet (MSTP, IP), which are selected using DIP switches. Rotary switches are used to set the module address, which facilitates and accelerates the process of commissioning the system. Built-in mini USB allows for the initial configuration of the unit without external power supply.

MINI I/O Modules with Ethernet have built-in Modbus Gateway TCP/IP to Modbus ASCII/RTU, enabling you to connect additional modules/devices that communicate via Modbus RS485.

Thanks to supporting open communication standards MINI modules can be installed in both new and completed installations, as part of existing BMS. This versatile device will fit any BMS perfectly.


Specifications

SKU
327976
Weight
0.204 kg.
Product code
iSMA-B-4O-H
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence

Experimental product description generated by artificial intelligence

iSMA-B-4O-H Expansion Module

The iSMA-B-4O-H from iSMA CONTROLLI is a powerful and versatile expansion module designed for various applications requiring reliable relay outputs and advanced communication protocols. This relay expansion module is part of the iSMA product family, known for its high quality and ease of use.

Key Features and Functions

  • 4 relay outputs: Each output is rated for 8A at 230V AC, enabling control of significant loads.
  • Manual control: Provides direct control over the outputs for convenient operation.
  • Modbus RTU/ASCII and BACnet MSTP communication: Seamless integration with various building management systems (BMS) and automation networks.

Applications

The iSMA-B-4O-H finds use in a wide range of applications, including:

  • Building automation
  • Industrial automation
  • Process control
  • HVAC systems

Why Choose iSMA-B-4O-H?

This expansion module offers a combination of high performance, flexibility, and ease of use. Its robust design and advanced communication capabilities make it an ideal choice for demanding applications. The manual control feature adds convenience for quick adjustments and troubleshooting.

FeatureDescription
Outputs4 relay outputs, 8A @ 230V AC
ControlManual control included
CommunicationModbus RTU/ASCII, BACnet MSTP

Expand your system's capabilities with the reliable and versatile iSMA-B-4O-H expansion module.


This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:

  • Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
  • Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
  • Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
  • Name or Model Discrepancies: AI may misrepresent the product name or model.

If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
