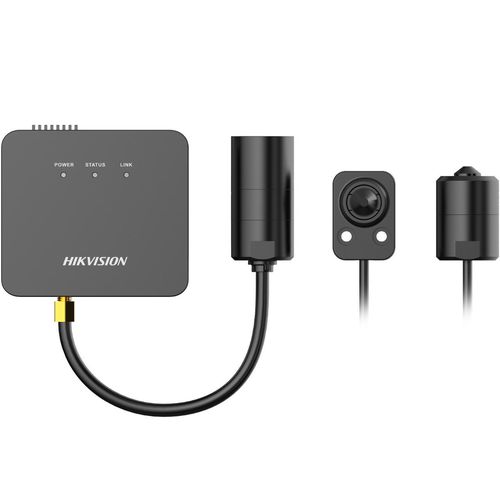

Hikvision pinhole DS-2CD6425G1-10
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Supplier product description
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology to save bandwidth and storage
- Clear imaging against strong back light due to 120 dB true WDR technology
- Audio and alarm interface available
- 3D DNR technology delivers clean and sharp images
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
- Audio1 input (line in), 1 output (line out)
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset KeyYes
- Event
- Basic Event Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
- Smart Event
Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection, defocus detection, scene change detection
- LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
- General
- Power
12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
- Dimension
Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7\" × 1.0\")
L10: Ø26 mm × 40 mm (Ø1.0 × 1.6\")
L20: 37 mm × 26 mm × 25 mm (1.5 × 1.0\" × 1.0\")
L30: Ø26 mm × 50 mm (Ø1.0 × 2.0\")"
- Package Dimension
Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5\" × 5.1\")
Camera: 219 mm × 139 mm × 100 mm (8.6 × 5.5\" × 3.9\")"
Main body: approx. 90 g (0.2 lb.)
Camera: approx. 90 g (0.2 lb.)
- With Package Weight
Main body: approx. 456 g (1.0 lb.)
Package (with 8 m cable): approx. 991 g (2.2 lb.)
Package (with 2 m cable): approx. 776 g (1.7 lb.)
Camera (with 8 m cable): approx. 676 g (1.5 lb.)
Camear (with 2 m cable): approx. 451 g (1.0 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
- General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
- Length of Lens Cable2 m (6.6 ft.) and 8 m (26.2 ft.) optional
- Approval
- EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 62368-1);
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
