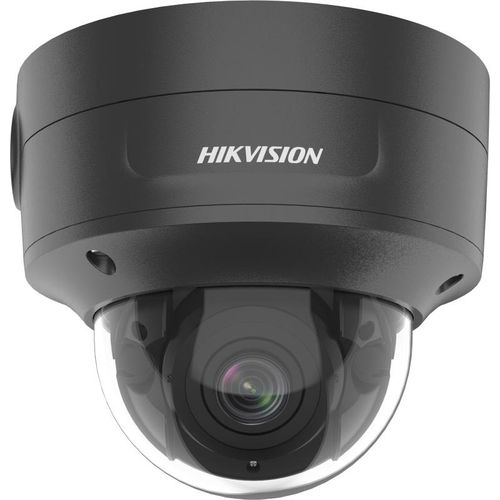

Hikvision dome DS-2CD2746G2-IZS F2.8-12 (black, 4 MP, 40 m. IR, AcuSense, DarkFighter)
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Supplier product description
- MP (MegaPixel): 4 MP
- Pigtail camera
- Lens: 2.8-12mm, horizontal FOV: 108°-30°
- Technology: AcuSense
- Integrated microphone: No, microphone input available
- Night illumination: 40 m. IR;
- Space for microSD capacity: Yes, 256GB
- Working conditions: -30 °C to 60 °C
- Security level: IP67
- Image compression: H.265+
- WiFi: No
- Outdoor/Indoor: Outdoor
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lens
- Lens TypeVarifocal lens, motor-driven lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- Lens MountØ14
- Iris TypeFixed
- ApertureF1.4
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR WavelengthYes
- Video
- Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Video Compression
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio TypeMono sound
- Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 512 GB
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Event
- Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Deep Learning Function
- Face CaptureYes
- General
- Power
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- DimensionØ153.5 mm× 133.1 mm (Ø6.0" × 5.2")
- Package Dimension244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
- WeightApprox. 845 g (1.9 lb.)
- With Package WeightApprox. 1714 g (3.8 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
LOA (IEC/EN 60950-1)
- EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
- ProtectionIP66 (IEC 60529-2013), IK10(IEC 62262:2002)
