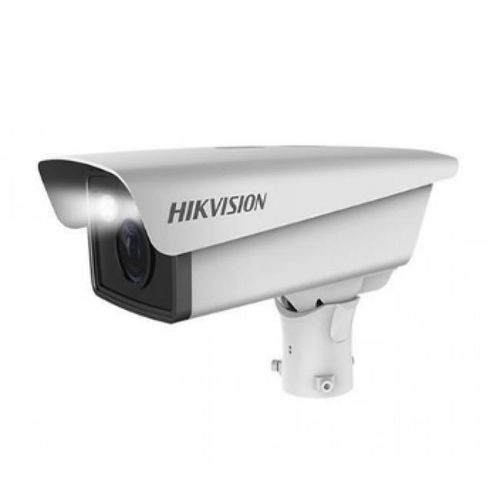

Hikvision bullet DS-TCG227-AIR
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Supplier product description
- 2MP IP bullet camera
- 3.1 to 9mm motorized vari-focal lens
- IP67
- IK10
- Support relay output to control vehicle barrier
- Support dirty license plate recognition
- Support vehicle type, vehicle color and vehicle brand recognition
- Up to 30,000 whitelists
- Offline control
- Camera
- Image Sensor1/2.8" Progressive Scan CMOS
- Min. Illumination
Color: 0.002Lux@(F1.2, AGC ON)
B/W: 0.002Lux@(F1.2, AGC ON)
- Shutter Speed1/30 s to 1/100,000 s
- Lens3.1 mm to 9 mm
- IR Cut FilterSupport
- Compression Standard
- Video CompressionH.265, H.264
- Video Bit Rate32 Kbps to 16 Mbps
- Image
- Max. Resolution1920 × 1200
- Image Settings
Saturation: 0 to 100
Brightness: 0 to 100
Contrast: 0 to 100
Gain: 0 to 100
3D DNR: Off, Normal and Expert modes are selectable.
White balance: White Balance 1 and White Balance 2 are selectable.
- Image FormatJPEG
- Frame Rate25 fps(1920 × 1200)
- Network
- Network StorageTF
- ProtocolsTCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP Upload Pictures
- SecurityUser Authentication, Heartbeat, NTP
- APIISAPI, SDK
- Interfaces
- Serial Port1 RS-485 Port, 1 RS-232 Port
- Built-in LED2 built-in LEDs
- Audio Output1-ch audio output
- Triggered Input3-ch triggered input, including 1-ch I/O triggered input and 2-ch alarm input
- Relay Output2-ch relay output, support open/close of barrier gates
- Memory Card Slot1 TF card slot, up to 128GB
- Communication Interface1 RJ45 10M/100M/1000M Ethernet port
- General
- Working Temperature-30°C to 70°C (-22°F to 158°F)
- Working Humidity90% or less (non-condensing)
- Power Supply12 VDC, PoE (802.3af)
- Power Consumption12 VDC, 1.0 A, 20 W
- Protection LevelIP67, IK10
- Snapshot
- AnalyticSupport ANPR
- LED ControlSupport automatic light control/time control of LEDs
- Picture FormatJPEG with configurable quality
- Vehicle Recognition
- Vehicle ColorRed, yellow(including orange), green, blue, purple, brown, white, grey(including silvery), black
- Vehicle BrandHyundai, Toyota, Kia, Honda, Volkswagen, Benz, Nissan, Ford, ISUZU, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, Hino, Peugeot, Ssang Yong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, UD Trucks, Subaru, IVECO, MINI, Jeep, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, SAIC Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Mercury, Joylong, Geely, Cadillac, Jinbei, Ankai, Haima, Foton, King Long, Dongfeng, Emgrand
- Country/Region supported by ANPR
European and Russian-Speaking Regions:
Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel, Ukraine, Kyrgyzstan, and Russian Federation
- ANPR Recognition Accuracy(Under recommended installation and lighting conditions)
Capture rate > 98%
Vehicle moving direction recognition accuracy > 96%
Mistaken capture rate < 2% (entrance/exit), < 5% (checkpoint)
European and Russian-Speaking Regions:
LPR accuracy > 98%
Country/Region recognition accuracy > 98%
- Vehicle TypeCar (including SUV, MPV, Pickup)/truck/bus/van
