High Voltage Insulation Resistance 250V/100G?-2500V/1T? DC ; 30-1000V DC; 30-750V AV; Short circuit current: about 3.5mA
Delivery terms
Order processing
Order processing
Quantity in shop
 Not available | Lemona Estonia warehouse |
| Not available | Lemona Vilnius warehouse 1 |
 1 pcs | Lemona Vilnius warehouse 2 |
| Not available | Lemona Kaunas warehouse |
| 1 pcs | Lemona Klaipėda warehouse |
| Not available | Lemona Šiauliai warehouse |
| Not available | Lemona central warehouse |
Home delivery
Home delivery
To €25.00 (Orders up to 1000 kgs) | For free |
Over €25.00 (Orders up to 1000 kgs) | For free |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
For free
Product description

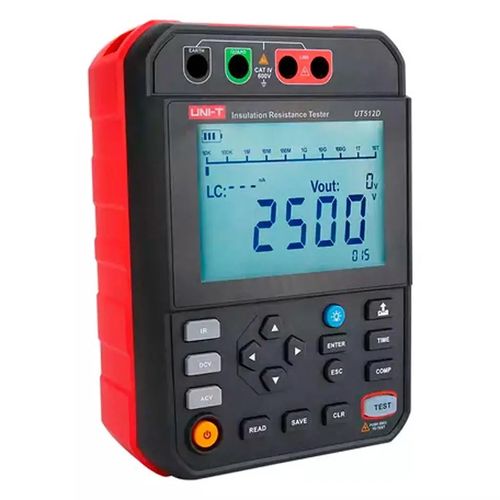

UT512D/UT512E 2.5kV Insulation Resistance Testers
UT512D/UT512E is digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. It is an ideal measurement meter for electric power, telecommunication, meteorology, machine room, oilfield, electromechanical installation and maintenance, and power supply department of Industry and mining enterprise.
Models: UT512D, UT512E
Features of UT512D/UT512E 2.5kV Insulation Resistance Testers
Certificates: CE, UKCA
● Output voltage range: Up to 2.5KV
● PI/DAR measurement
● Short circuit current measurement
● Automatic leakage current display
● Stepping voltage: 10% of the range
● High voltage alarm
● Automatic discharge
● Data storage: 999 sets
● PC software analysis: via USB cable
● Overvoltage category: CAT IV 600V
Specifications of UT512D/UT512E 2.5kV Insulation Resistance Testers
|
Rated voltage |
UT512D |
UT512E |
Accuracy |
|
250V |
<0.25MΩ |
<0.25MΩ |
reference only |
|
0.25MΩ～4.99GΩ |
0.25MΩ～4.99GΩ |
±(5%+5) |
|
|
5.00GΩ～24.9GΩ |
5.00GΩ～49.9GΩ |
±(20%+10) |
|
|
25.0GΩ～100GΩ |
50.0GΩ～250GΩ |
reference only |
|
|
500V |
<0.50MΩ |
<0.50MΩ |
reference only |
|
0.50MΩ～9.99GΩ |
0.50MΩ～9.99GΩ |
±(5%+5) |
|
|
10.0GΩ～49.9GΩ |
10.0GΩ～99.9GΩ |
±(20%+10) |
|
|
50.0GΩ～200GΩ |
100GΩ～500GΩ |
reference only |
|
|
1000V |
<1.00MΩ |
<1.00MΩ |
reference only |
|
1.00MΩ～19.9GΩ |
1.00MΩ～19.9GΩ |
±(5%+5) |
|
|
20.0GΩ～99.9GΩ |
20.0GΩ～199GΩ |
±(20%+10) |
|
|
100GΩ～400GΩ |
200GΩ～1.00TΩ |
reference only |
|
|
2500V |
<2.50MΩ |
<2.50MΩ |
reference only |
|
2.50MΩ～49.9GΩ |
2.50MΩ～49.9GΩ |
±(5%+5) |
|
|
50.0GΩ～249GΩ |
50.0GΩ～499GΩ |
±(20%+10) |
|
|
250GΩ～1.00TΩ |
500GΩ～2.50TΩ |
reference only |
|
|
Capacitance test |
NA |
0.01uF～2.0uF |
±（15%+3） |
|
Low resistor test |
NA |
0.1Ω～600Ω |
±（2%+10） |
|
Output voltage(Rating) |
stepping voltage range |
Step by 10% of each range each time, and adjust the voltage range to 50%~120% of each range； |
|
|
250V |
350V, 275V, 300V |
||
|
500V |
300V, 350V, 400V, 450V, 500V, 550V, 600V |
||
|
1000V |
500V, 600V, 700V, 800V, 900V, 1000V, 1100V, 1200V |
||
|
2500V |
1250V, 1500V, 1750V, 2000V, 2250V, 2500V |
||
|
DC voltage |
30～1000VDC |
±(3%+5) |
|
|
AC voltage |
30～750VAC |
±(3%+5) |
|
|
Current |
0.01nA～3.5mA |
0.01nA～5mA |
|
|
Short-circuit current |
about 3.5mA |
about 5mA |
|
|
Features |
|||
|
PI test |
automatic display |
√ |
|
|
DAR test |
automatic display |
√ |
|
|
Timing measurement |
√ |
||
|
Resistance comparison |
√ |
||
|
Monitoring function |
Monitor the voltage of measured object and the discharge state after testing. |
√ |
|
|
Timer testing |
Record testing time automatically. |
√ |
|
|
Storage function |
999 sets |
||
|
Data transmission |
Upload testing data to computer via USB cable. |
√ |
|
|
Low Battery indication |
√ |
||
|
Auto power off |
√ |
||
|
Dimensions |
238 * 166 * 90.5mm |
||
|
CAT rating |
CAT Ⅳ 600V |
||
|
Certificates |
CE/UKCA |
||
|
General Characteristics |
|||
|
Power supply |
8 * LR14 Alkaline battery |
UT512D |
|
|
14.8V,5200mAh lithium battery |
UT512E |
||
|
Product Color |
Black+Red |
||
|
Product Weight |
About 1800g (including battery) |
||
|
Accessories |
User manual 1 pc; Test lead (red, black, green: 1 for each) 3 pcs; USB cable 1 pc; Lithium battery charger (Output: 16.8Vdc, 2A) 1 pc (UT512E only); Lithium battery pack (14.8V, 5200mAh) 1 pc (UT512E only); Adapting charging stand (optional, model: UT-W12, for UT512E only); 8 PCS LR14 alkaline batteries (UT512D); Carrying strap 1pc |
||
|
Standard package |
Case + carton |
||
|
Package quantity |
1pcs |
||
|
Package Size |
238 x 166 x 90.5mm(L*W*D) |
||
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T High Voltage Insulation Resistance Tester
This UNI-T Insulation Resistance Meter is a reliable and precise instrument for measuring high voltage insulation resistance. Ideal for various applications requiring accurate readings in high-voltage environments.
Key Features and Specifications
- Measurement Ranges: 250V/100GΩ-2500V/1TΩ DC; 30-1000V DC; 30-750V AC
- Short Circuit Current: Approximately 3.5mA
- High Accuracy: Ensures dependable and precise measurements for critical applications.
- Durable Construction: Built to withstand the rigors of professional use.
- Easy to Use: Simple operation for efficient testing.
Applications
This high voltage insulation resistance tester is suitable for a wide range of applications, including:
- Electrical equipment testing
- Power system maintenance
- Industrial applications
- Quality control
Why Choose UNI-T?
UNI-T is a trusted brand known for producing high-quality, reliable test and measurement equipment. This insulation resistance tester reflects that commitment to excellence, offering:
- Accuracy: Provides precise measurements for reliable results.
- Durability: Built to withstand demanding conditions.
- Ease of Use: Simple operation for efficient workflow.
- Value: A cost-effective solution for professional-grade testing.
Product Overview
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Type | Insulation Resistance Meter |
| Voltage Ranges | 250V/100GΩ-2500V/1TΩ DC; 30-1000V DC; 30-750V AC |
| Short Circuit Current | ~3.5mA |
This high voltage insulation resistance meter, also known as a high voltage megohmmeter or high voltage insulation tester, is an essential tool for anyone working with high-voltage systems. Its accurate readings and robust design make it a valuable asset for ensuring safety and maintaining equipment.
