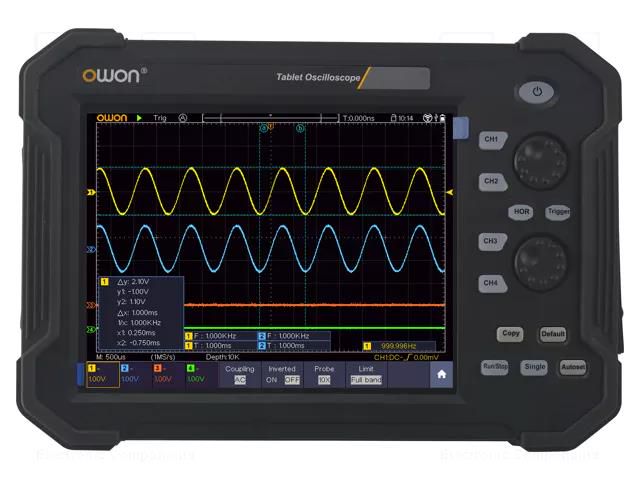

Handheld oscilloscope; 70MHz; 8bit; LCD TFT 8"; Ch: 4; 1Gsps; ≤5ns OWON
Product Code: TAO3074
More similar products
Delivery terms
2024-07-24 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Handheld oscilloscope; 70MHz; 8bit; LCD TFT 8"; Ch: 4; 1Gsps; ≤5ns OWON
Useful information
Specifications
SKU
U-2170457
Product code
TAO3074
Supplier product description
Handheld oscilloscope; 70MHz; 8bit; LCD TFT 8"; Ch: 4; 1Gsps; ≤5ns
Useful information
Supplier parameters
Band
70MHz
Dimensions
270x191x48mm
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
TAO3000
Measurement memory
100
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
40Mpts
Number of channels
4
Plug variant
EU
Power supply
rechargeable battery Li-Ion 7,4V 8000mAh x1
Rise time
≤5ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
mains cable
Time base
2n...1ks/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
Product code
TAO3074
Supplier's product code
TAO3074
Product ID
U-2170457
