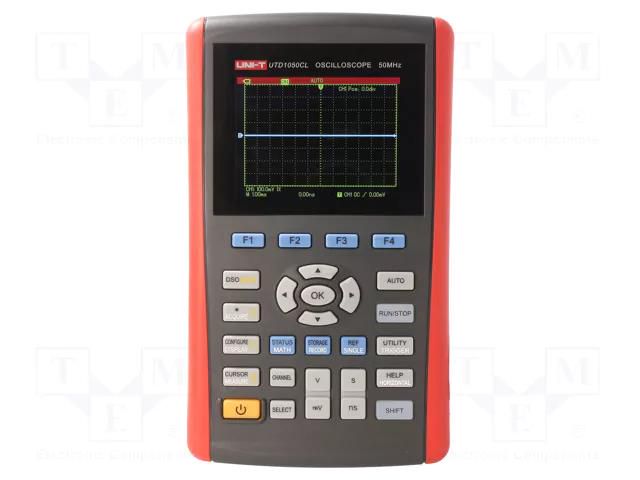

Handheld oscilloscope; 50MHz; LCD TFT 3,5"; Ch: 1; 200Msps; 12kpts UNI-T
Product Code: UTD1050CL
Delivery terms
2024-07-11 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Handheld oscilloscope; 50MHz; LCD TFT 3,5"; Ch: 1; 200Msps; 12kpts
Useful information
Supplier parameters
NomNr
UTD1050CL
Brand
UNI-T
Supplier's product code
UTD1050CL
Product ID
U-371719
AC current measuring range
4mA
AC voltage measuring accuracy
±(1.2% + 5 digit)
AC voltage measuring range
400V
Band
50MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,4V 3600mAh x1
Capacitance measuring accuracy
±(3%+ 5 digit)
Capacitance measuring range
100µF
DC current measuring range
40mA
DC voltage measuring accuracy
±(1.2% + 5 digit)
DC voltage measuring range
400V
Dimensions
199x118x49mm
Display parameters
(3999)
Display resolution
320x240
Input sensitivity
5mV/div...20V/div
Interface
USB mini
Kind of display used
LCD TFT 3,5"
Manufacturer
UNI-T
Max. input voltage
400V
Measurement
AC voltage
Measuring instrument features
automatic measurement of many parameters
Memory record length
12kpts
Number of channels
1
Power supply
mains power supply
Resistance measuring accuracy
±(1.2%+5 digit)
Resistance measuring range
4kΩ
Rise time
≤7ns
Sampling
200Msps
Standard equipment
test leads
Test
diodes
Time base
5n...50s/div
Type of oscilloscope
handheld oscilloscope
Trigger
video signal
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
