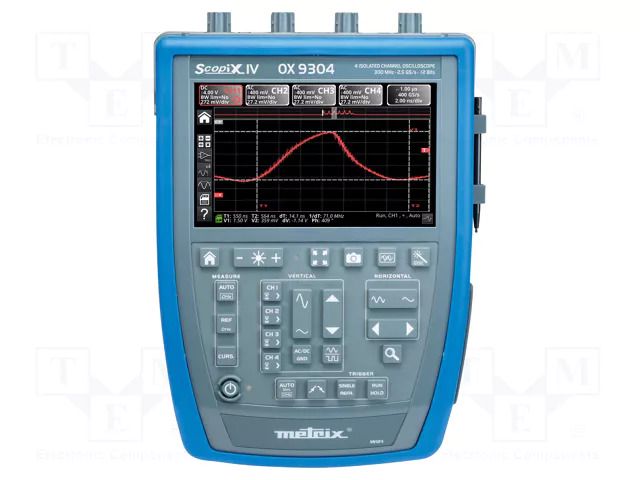

Handheld oscilloscope; 300MHz; 12bit; colour,LCD TFT 7"; Ch: 4 METRIX
Product Code: OX9304
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Handheld oscilloscope; 300MHz; 12bit; colour,LCD TFT 7"; Ch: 4
Useful information
Supplier parameters
Product code
OX9304
Brand
METRIX
Supplier's product code
OX9304
Product ID
U-282770
Additional functions
multimeter
Band
300MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 10,8V 5800mAh x1
Conform to the norm
EN 61010
Dimensions
292.5x210.6x66.2mm
Diode test
3.3V
Display resolution
800x480
Illumination
yes
Input coupling
AC, DC, GND
Input impedance
1MΩ/12pF
Input sensitivity
2.5mV/div...200V/div
Interface
USB
IP rating
IP54
Kind of display used
colour
Manufacturer
METRIX
Manufacturer series
ScopiX IV
Max. input voltage
0.6/1kV
Measurement
AC voltage
Measuring instrument features
measurements by means of cursors
Memory record length
100kpts/ch
Number of channels
4
Optional equipment
ProbiX accessories
Power supply
rechargeable battery Li-Ion 10,8V 5800mAh x1
Rise time
≤1.17ns
Sampling
2,5Gsps
Software
dedicated mobile app
Standard equipment
test leads
Storage temperature
-20...70°C
Time base
1n...200s/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
rising-edge
Trigger coupling
AC
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
12bit
