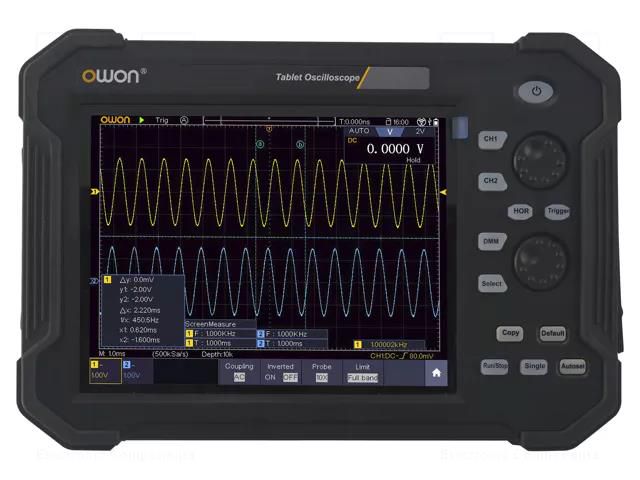

Handheld oscilloscope; 120MHz; 14bit; LCD TFT 8"; Ch: 2; 1Gsps OWON

Product Code: TAO3122A
no gallery
no gallery

Price range

AmountPrice with tax (pcs)
1-3
1,285.911,285.91
4+
1,205.88
wholesale

Min. qty: 1

Multiplier: 1

Total:

1,285.91
2024-11-28 Estimated delivery

Delivery terms

2024-11-28 Estimated delivery

Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail

Available7 pcs

Supplier Warehouse

home delivery

Home delivery

Home delivery

After handing over the goods to the courier, we will inform you by e-mail.

Over €25.00

(Orders up to 1000 kgs)

For free

To €25.00

(Orders up to 1000 kgs)

€4.50

Shipping parcel

Delivery to DPD pickup locations

Delivery to DPD pickup locations

After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.

€3.50

Product description

Handheld oscilloscope; 120MHz; 14bit; LCD TFT 8"; Ch: 2; 1Gsps OWON

Useful information


Specifications

SKU
U-2170464
Product code
TAO3122A

Supplier product description

Handheld oscilloscope; 120MHz; 14bit; LCD TFT 8"; Ch: 2; 1Gsps

Useful information

Supplier parameters

Product code
TAO3122A
Supplier's product code
TAO3122A
Product ID
U-2170464
Additional functions
multimeter
Band
120MHz
Connectors for the country
Europe
Dimensions
270x191x48mm
Display resolution
800x600
Input coupling
AC, DC, GND
Input impedance
1MΩ/15pF
Input sensitivity
1mV/div...10V/div
Interface
LAN
Kind of display used
LCD TFT 8"
Manufacturer
OWON
Manufacturer series
TAO3000
Measurement memory
100
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT
Memory record length
40Mpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 7,4V 8000mAh x1
Rise time
≤2.9ns
Sampling
1Gsps
Software
LabVIEW
Standard equipment
mains cable
Time base
1n...1ks/div
Type of oscilloscope
handheld oscilloscope
Touchpad
yes
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
14bit
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
