Product description

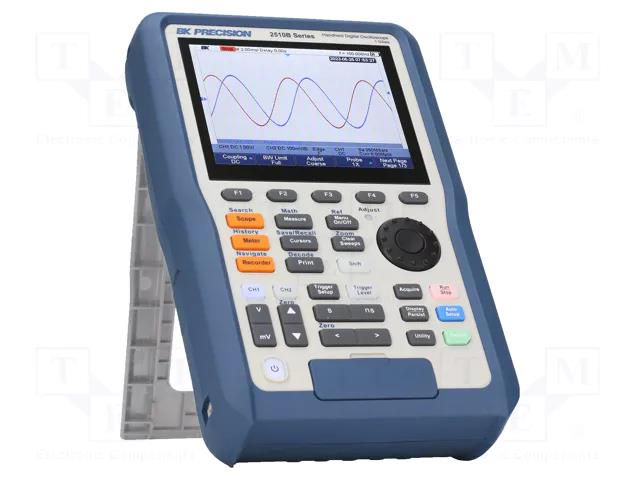

Handheld oscilloscope; 100MHz; 8bit; LCD TFT; Ch: 2; 1Gsps; 12Mpts B&K PRECISION
Useful information
Specifications
SKU
U-4025091
Product code
BK2511B
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD TFT; Ch: 2; 1Gsps; 12Mpts
Useful information
Supplier parameters
Product code
BK2511B
Supplier's product code
BK2511B
Product ID
U-4025091
AC current measuring accuracy
±(1% + 15 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(1% + 15 digit)
AC voltage measuring range
600V
Additional functions
multimeter
Band
100MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 7,2V x1
Capacitance measuring range
40nF
Conform to the norm
CAT II 300V
Continuity test
<50Ω
DC current measuring range
10A
DC voltage measuring range
600V
Dimensions
168x276x68mm
Diode test
0...2V
Display resolution
640x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/14pF
Input sensitivity
2mV/div...100V/div
Interface
USB Host
IP rating
IP51
Kind of display used
LCD TFT
Manufacturer
B&K PRECISION
Max. input voltage
300V
Measuring instrument features
I2C, SPI, UART, CAN, LIN Serial Decode
Memory record length
12Mpts
Number of channels
2
Power supply
rechargeable battery Li-Ion 7,2V x1
Resistance measuring accuracy
±(1%+15 digit)
Resistance measuring range
600Ω
Rise time
≤3.5ns
Sampling
1Gsps
Screen size
5.6"
Standard equipment
USB cable
Supply voltage
100...240V
Support
SCPI
Type of oscilloscope
handheld oscilloscope
Trigger
video signal
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
