Product description
Brand

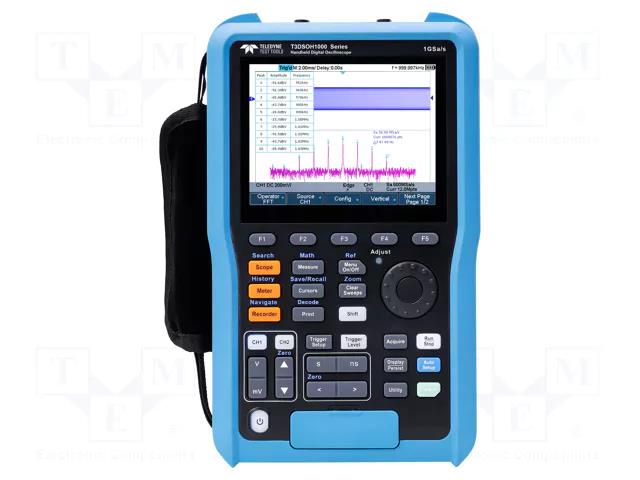

Handheld oscilloscope; 100MHz; 8bit; LCD TFT 5,6"; Ch: 2; 1Gsps TELEDYNE LECROY
Useful information
Specifications
Supplier product description
Handheld oscilloscope; 100MHz; 8bit; LCD TFT 5,6"; Ch: 2; 1Gsps
Useful information
Supplier parameters
NomNr
LC-T3DSOH1102-ISO
Supplier's product code
LC-T3DSOH1102-ISO
Product ID
U-3920010
Additional functions
multimeter
Band
100MHz
Battery/ rechargeable battery
rechargeable battery Li-Ion 12V 6900mAh x1
Dimensions
276x168x68mm
Display resolution
640x480
Input coupling
AC, DC, GND
Input impedance
1MΩ/14pF
Input sensitivity
2mV/div...100V/div
Interface
USB
IP rating
IP51
Kind of display used
LCD TFT 5,6"
Manufacturer
TELEDYNE LECROY
Manufacturer series
T3DSOH1000-ISO
Measuring instrument features
insulated inputs
Memory record length
12Mpts/ch
Number of channels
2
Power supply
rechargeable battery Li-Ion 12V 6900mAh x1
Producer guarantee (months)
36
Rise time
≤3.5ns
Sampling
1Gsps
Standard equipment
test leads
Time base
1n...100s/div
Type of oscilloscope
handheld oscilloscope
Trigger
rising-edge
Trigger modes
automatic
Trigger source
CH1
Vertical resolution
8bit
Brand
TELEDYNE LECROY
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
