Supplier product description

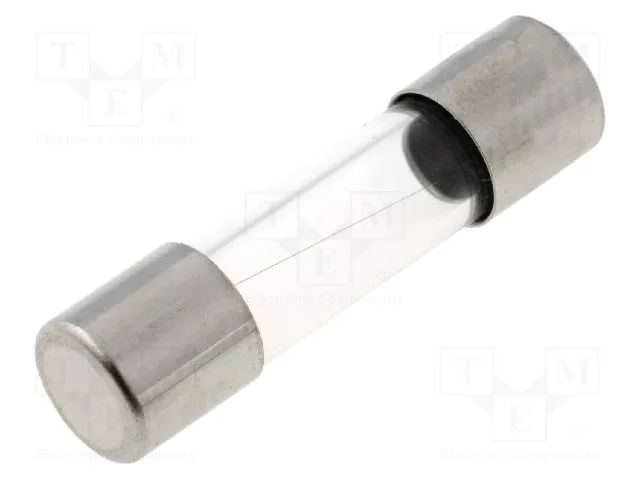

Fuse: fuse; time-lag; 800mA; 250VAC; cylindrical,glass; 5x20mm
Useful information
Supplier parameters
NomNr
0213.800MXP
Breaking capacity
35A
Breaking characteristics
2I<sub>n</sub>: max 120s
Contact material
brass
Contact plating
nickel plated
Current rating
0.8A
Energy I2t
9.42A<sup>2</sup>s
Fuse characteristics
time-lag
Fuse size
5x20mm
Fuses application
standard applications
Kind of fuse
miniature
Kind of package
bag
Manufacturer
LITTELFUSE
Manufacturer series
213
Max voltage drop
0.25V
Operating temperature
-55...125°C
Power dissipation
1.6W
Rated voltage
250V AC
Soldering temperature
250°C / 5 s
Type of fuse
fuse
Brand
LITTELFUSE
Supplier's product code
0213.800MXP
Product ID
U-56256
