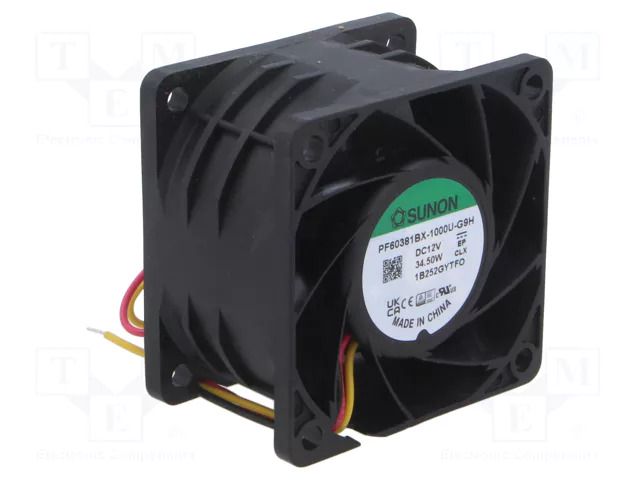

Fan: DC; axial; 12VDC; 60x60x38mm; 127.8m3/h; 73.1dBA; ball; 24AWG SUNON
Product Code: PF60381BX-G9H
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 12VDC; 60x60x38mm; 127.8m3/h; 73.1dBA; ball; 24AWG
Supplier parameters
Product code
PF60381BX-G9H
Additional functions
autorestart
Current rating
2.5...2.87A
Enclosure material
thermoplastic
Fan dimensions
60x60x38mm
Fan efficiency
127.8m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
73.1dBA
Operating temperature
-10...70°C
Operating voltage
7.7...13.2V DC
Power consumption
30...34.5W
Rotational rate/speed
16500rpm
Signal output
F type
Supply voltage
12V DC
Type of fan
DC
Unit price
No
Wire size
24AWG
Brand
SUNON
Supplier's product code
PF60381BX-G9H
Product ID
U-4232057
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
