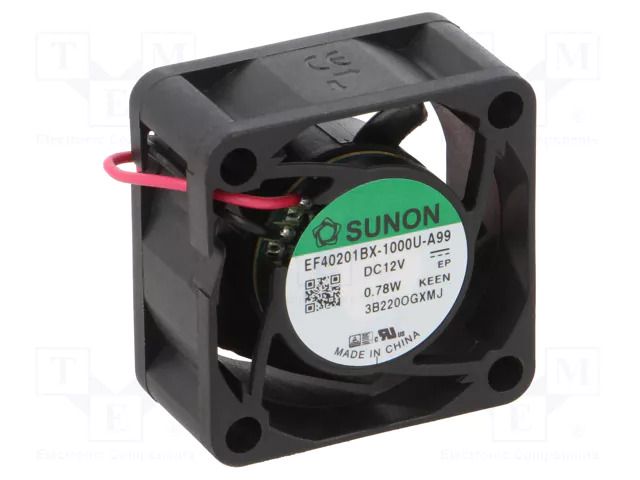

Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball bearing SUNON
Product Code: EF40201BX-A99-A
Delivery terms
2024-07-17 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 436 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 12VDC; 40x40x20mm; 18.7m3/h; 28.5dBA; ball bearing
Useful information
Supplier parameters
Product code
EF40201BX-A99-A
Brand
SUNON
Supplier's product code
EF40201BX-A99-A
Product ID
U-2497548
Additional functions
Autorestart
Cable length
0.305m
Current and power consumption tolerance
±15%
Current rating
65mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
18.7m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball bearing
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
28.5dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V
Power consumption
0.78W
Rotational rate/speed
8200rpm
Supply voltage
12V DC
Type of fan
DC
