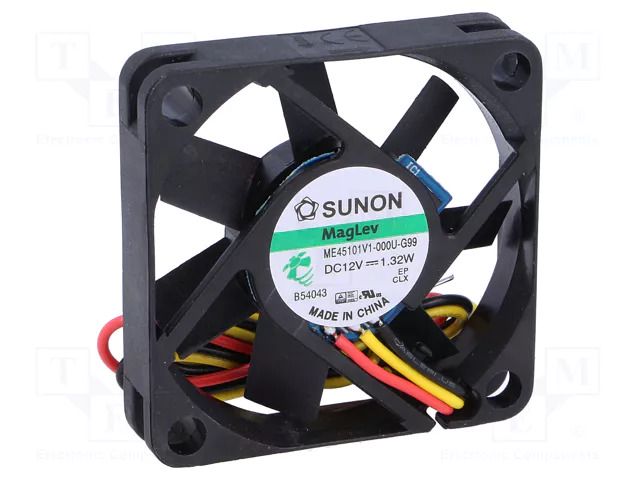

Fan: DC; axial; 12VDC; 45x45x10mm; 19.9m3/h; 32.5dBA; Vapo; 26AWG SUNON
Product Code: ME45101V1-G99
Delivery terms
2024-07-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 2539 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 12VDC; 45x45x10mm; 19.9m3/h; 32.5dBA; Vapo; 26AWG
Useful information
Supplier parameters
Product code
ME45101V1-G99
Product ID
U-255167
Additional functions
Autorestart
Cable length
0.3m
Current and power consumption tolerance
±15%
Current rating
0.11A
Enclosure material
thermoplastic
Fan dimensions
45x45x10mm
Fan efficiency
19.9m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
32.5dBA
Operating temperature
-10...70°C
Operating voltage
4.5...13.8V
Power consumption
1.32W
Rotational rate/speed
6500 (±15%)rpm
Signal output
F type
Static pressure
4.57mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
ME45101V1-G99
