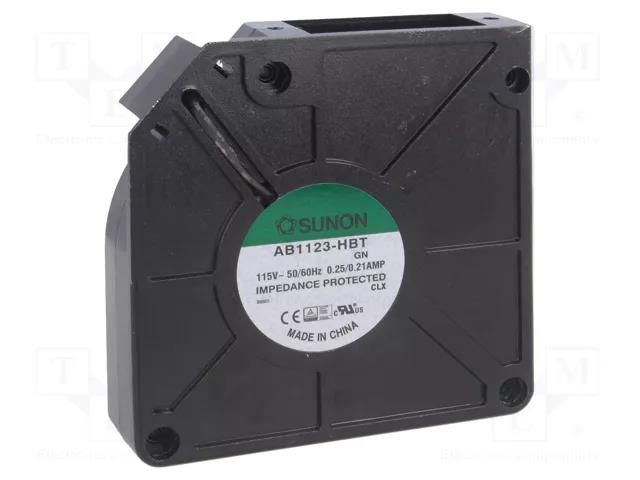

Fan: AC; blower; 115VAC; 120x120x37mm; 34m3/h; 48dBA; ball bearing SUNON
Product Code: AB1123HBT
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: AC; blower; 115VAC; 120x120x37mm; 34m3/h; 48dBA; ball bearing
Useful information
Supplier parameters
Product code
AB1123HBT
Cable length
0.3m
Current and power consumption tolerance
±15%
Current rating
0.25A
Enclosure material
aluminium
Fan dimensions
120x120x37mm
Fan efficiency
34m<sup>3</sup>/h
Flammability rating
UL94V-0
Frequency
50Hz
Impeller material
thermoplastic
Kind of Bearing
ball bearing
Kind of fan
blower
Leads
connectors 2,8x0,3mm
Manufacturer
SUNON
Min. insulation resistance
500MΩ
Noise level
48dBA
Operating temperature
-10...70°C
Power consumption
20W
Rotational rate/speed
2600 (±10%)rpm
Static pressure
8.12mm H<sub>2</sub>O
Supply voltage
115V AC
Type of fan
AC
Wire size
24AWG
Brand
SUNON
Supplier's product code
AB1123HBT
Product ID
U-103499
