Product description

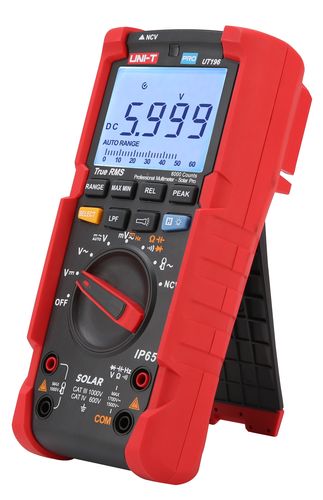

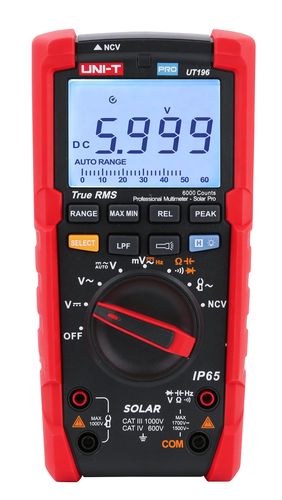

UT196 True RMS solar digital multimeter is an ideal tool for solar power
system maintenance. This rugged meter is designed for technicians who
work in rugged outdoor environments. UT196 can measure up to 1700V DC
and 1500V AC voltages, and 3000A AC current with an external current
clamp sensor. This solar meter offers IP65 protection and able to withstand
2m drop as well.
The low-pass filter function allows the meter to isolate high-frequency noise
generated by the drive controller. Its low impedance mode can help
technicians to troubleshoot sensitive circuits as well as circuits that may
contain ghost voltages. The built-in flashlight, bright backlight and visual
alarm enable users to finish the work safely and efficiently even in dark and
noisy environments.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC
overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V
environments.
Features of UT196 1700V DC True RMS Professional Multimeter – Solar Pro
Certifications: CE, UKCA, cETLus
● True RMS
● Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
● IP65 protection
● CAT III 1000V, CAT IV 600V
● Analog bar
● Frequency response：45Hz~1kHz
● Low-pass filter function
● Low impedance mode
● Built-in flashlight, bright backlight and visual alarm
Specifications of UT196 1700V DC True RMS Professional Multimeter – Solar Pro
|
Specifications |
Range |
UT196 |
|
DC voltage(V) |
1700V |
±(0.2%＋5) |
|
AC voltage(V) |
1500V |
±(0.8%＋3) |
|
Frequency (Hz) |
1MHz |
±(0.08%+4) |
|
Resistance(Ω) |
60MΩ |
±(0.8%＋2) |
|
Capacitance (F) |
60mF |
±(1.9%+5) |
|
Features |
||
|
Display count |
6000 |
|
|
True RMS |
√ |
|
|
Dual display |
√ |
|
|
Auto range |
√ |
|
|
NCV |
√ |
|
|
Diode test |
√ |
|
|
Continuity |
√ |
|
|
Relative mode |
√ |
|
|
Max/Min |
√ |
|
|
Peak hold |
√ |
|
|
Low pass filter(LPF) |
√ |
|
|
Audible visual indication |
√ |
|
|
Low battery indication |
＜7.5V approximately |
√ |
|
Data hold |
√ |
|
|
Analog bar graph |
√ |
|
|
Auto power off |
Approximately 15 minutes |
√ |
|
Flashlight |
√ |
|
|
IP rating |
IP65 |
|
|
Drop test |
2m |
|
|
Safety rating |
CAT III 1000V, CAT IV 600V |
|
|
General Characteristics |
||
|
Power |
9V battery |
|
|
Product color |
Red+Gray |
|
|
Product net weight |
485g |
|
|
Product size |
195 x 95 x 58mm |
|
|
Standard accessories |
English manual, test leads, battery. |
|
|
Standard individual packing |
Gift box,carrying bag. |
|
|
Standard quantity per carton |
10 pcs |
|
|
Standard carton measurement |
480×370×195mm |
|
Useful information
Specifications
Experimental product description generated by artificial intelligence
UNI-T Digital Multimeter LCD (6000)
This UNI-T Digital Multimeter, also known as a DMM or electrical tester, is a versatile and reliable tool for various electrical measurements. Its LCD display provides clear readings, making it easy to use in a variety of settings.
Key Features and Specifications
- Brand: UNI-T
- Model: LCD (6000)
- Display: LCD
- DC Voltage Measurement Ranges: 600mV, 6V, 60V, 600V, 1.7kV
Applications
This digital multimeter is ideal for professionals and hobbyists alike. Its wide range of DC voltage measurement capabilities makes it suitable for a variety of applications, including:
- Electrical troubleshooting
- Circuit testing
- Electronics repair
- Automotive diagnostics
Why Choose This UNI-T Multimeter?
The UNI-T LCD (6000) multimeter offers a balance of accuracy, reliability, and ease of use. Its clear display and multiple voltage measurement ranges make it a valuable tool for anyone working with electrical systems. Choose this multimeter for its dependable performance and straightforward operation.
| Feature | Benefit |
|---|---|
| Multiple Voltage Ranges | Adaptable to various testing needs |
| LCD Display | Clear and easy-to-read measurements |
| UNI-T Brand | Known for quality and reliability |
This UNI-T digital multimeter is a cost-effective and practical solution for your electrical testing requirements.
