Supplier product description

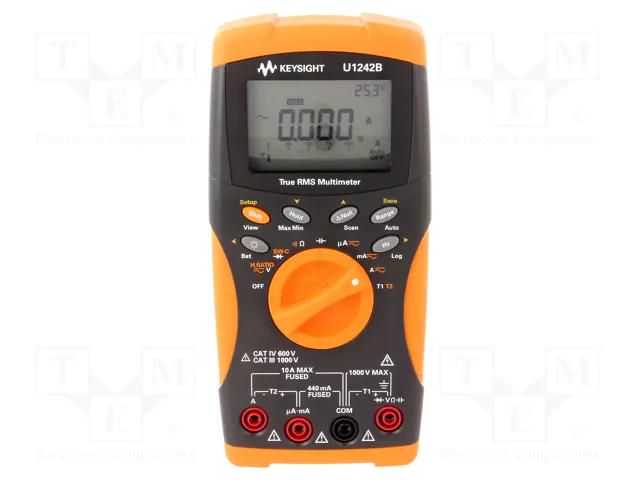

Digital multimeter; LCD; 4 digit (11000); Bargraph: 21segm.
Useful information
Supplier parameters
Product code
U1242B
Brand
KEYSIGHT
Supplier's product code
U1242B
Product ID
U-366473
AC current measuring accuracy
±(1.5% + 5 digit)
AC current measuring range
10A
AC voltage measuring accuracy
±(1% + 5 digit)
AC voltage measuring range
1kV
Bandwidth for AC current measurements
40Hz...2kHz
Bandwidth for AC voltage measurements
40Hz...2kHz
Bargraph
21 segm.
Battery/ rechargeable battery
battery LR03 AAA 1,5V x4
Capacitance measuring accuracy
±(1.2%+ 4 digit)
Capacitance measuring range
10mF
Conform to the norm
EN 61010
Continuity test
acoustic indication
DC current measuring accuracy
±(0.2% + 2 digit)
DC current measuring range
10A
DC voltage measuring accuracy
±(0.09% + 2 digit)
DC voltage measuring range
1kV
Dimensions (W x H x D)
92.2x193.8x58mm
Diode test
0.5mA @1V
Display parameters
4 digit (11000)
Frequency measuring accuracy
±(0.03%+3 digit)
Frequency measuring range
10kHz
Harmonic content measurement
0...99,9%, of in. volt. 100m...1000V AC
Illumination
yes
Information
Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Kind of display used
LCD
Manufacturer
KEYSIGHT
Manufacturer series
U1240A
Measurement
AC voltage
Measuring instrument features
universal
Power supply
battery LR03 AAA 1,5V x4
Related items
U1161A
Resistance measuring accuracy
±(0.3%+3 digit)
Resistance measuring range
10kΩ
Standard equipment
test leads
Temperature measurement accuracy
±(1% + 1°C)
Temperature measurement resolution
0.1°C
Temperature measuring range (with J-type thermocouple)
-40...1000°C
Temperature measuring range (with K-type thermocouple)
-40...1000°C
Type of meter
digital multimeter
True effective value measurement
True RMS
Weight with battery
450g
