Product description

Digital Clamp Meter Habotest HT208A True RMS, Habotest

Specifications

SKU
U-3763636
Product code
HT208A

Supplier product description

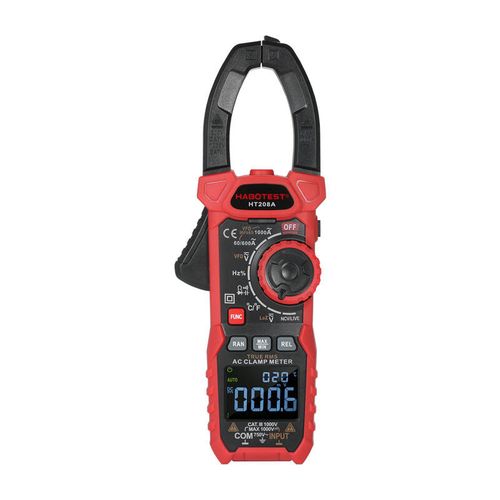

Habotest HT208A digital clamp meter

HT208A is a practical device with which you can check the value of various parameters, for example, AC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208A also features a flashlight for convenient operation in dark rooms.

Multifunctional device

You will use the HT208A in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.

Safe use

The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter's jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.

Additional features

When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What's more, the device will automatically turn off to save power if no action is performed within 15 min.

Function HT208A HT208D
DC voltage

6V/60V/600V/1000V

±(1%+3)

6V/60V/600V/1000V

±(1%+3)

AC voltage

6V/60V/600V/750V

±(1.2%+3)

6V/60V/600V/750V

±(1.2%+3)

DC current n/a

60A/600A/1000A ±(2.5%+5)

AC current

60A/600A/1000A

±(3.0%+5)

60A/600A/1000A

±(3.0%+5)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

Capacity

10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),

100mF ±(5.0%+5)



 10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3),

100mF ±(5.0%+5)

Frequency

 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

Duty

 1%~99%

±(1.0%+2)

1%~99%

±(1.0%+2)

Temperature

 -40°C~1000°C

±(1.0%+3)

-40°C~1000°C

±(1.0%+3)

Counts  6000 6000

Auto/manual range

 Yes Yes
Continuity  Yes, LED and buzz Yes, LED and buzz
Diode  Yes Yes
Data hold  Yes Yes
NCV  Yes, LED and buzz Yes, LED and buzz
Double color backlight  Yes Yes
Flashlight  Yes Yes

Low battery indicator

 Yes Yes
Auto power off  Yes Yes
True RMS  Yes Yes
LPF  Yes Yes
MAX/MIN  Yes Yes
V-LoZ  No Yes
Power  2x AA batteries (in the box) 2x AA batteries (in the box)
Weight  about 380 g about 380 g
Size  240 x 85 x 40 mm 240 x 85 x 40 mm
Size of jaws  44 mm 44 mm
Safety

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V
