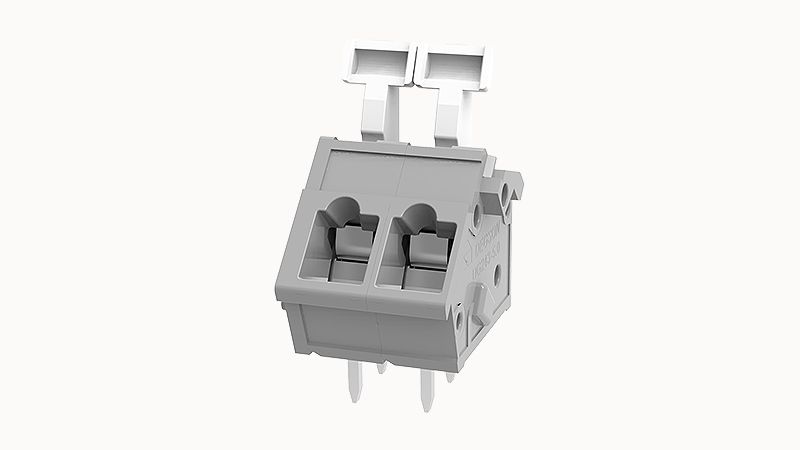

DG243-5.0-02P-11-00A(H)
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
€3.50
Product description
Processing notes
| Process | Wave soldering/manual soldering |
Connection capacity
| Conductor cross section solid | 0.2~2.5mm² |
| Conductor cross section flexible | 0.2~2.5mm² |
| AWG | 28~12AWG |
| Strip length | 6mm |
Electrical parameters UL
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 15A |
| Rated current (D) | 10A |
Electrical parameters IEC
| Rated voltage | 450V |
| Rated current | 17A |
| Rated voltage(III/2) | 450V |
| Rated power frequency voltage(1min) | 2.5KV |
Item properties
| Connection direction | 45° |
| Type of installation | PCB welding |
| Pin arrangement | Double-row in a straight line |
| Connection method | spring-cage connection |
| Pitch | 5mm |
| Number of potentials | 2 |
| Pluggable or not | no |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | Copper alloy |
| Contact point metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | UL1059/IEC60998 |
Environmental data
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
Useful information
Specifications
Other products of the same brand
Other products in this category
Experimental product description generated by artificial intelligence
DEGSON ELECTRONICS DG243-5.0-02P-11-00A(H) PCB Terminals
The DEGSON ELECTRONICS DG243-5.0-02P-11-00A(H) is a high-quality PCB terminal, designed for reliable and efficient electrical connections in various applications. This product offers a robust solution for connecting wires to printed circuit boards.
Key Features and Benefits
- Reliable Connections: Ensures secure and stable electrical connections.
- Durable Construction: Built to withstand demanding environments and provide long-lasting performance.
- Easy Installation: Simple and straightforward installation process, saving time and effort.
- Versatile Applications: Suitable for a wide range of PCB applications.
Why Choose DEGSON ELECTRONICS DG243-5.0-02P-11-00A(H)?
DEGSON ELECTRONICS is a trusted brand known for its commitment to quality and reliability. The DG243-5.0-02P-11-00A(H) PCB terminal reflects this commitment, offering superior performance and longevity. Choosing this product ensures a dependable solution for your PCB connection needs.
Applications
This PCB terminal is ideal for use in various industries and applications where reliable electrical connections are critical. Examples include:
- Industrial Automation
- Consumer Electronics
- Telecommunications
- Automotive
Technical Specifications
Specific technical details for the DG243-5.0-02P-11-00A(H) PCB terminal are not available at this time. Please contact us for further information.
This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:
- Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
- Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
- Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
- Name or Model Discrepancies: AI may misrepresent the product name or model.
If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail toš you: [email protected].
