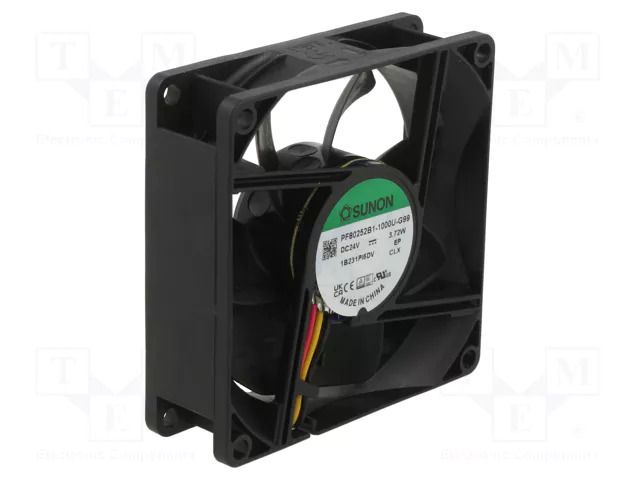

Fan: DC; axial; 24VDC; 80x80x25mm; 102m3/h; 45.5dBA; ball bearing SUNON
Product Code: PF80252B1-G99
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 24VDC; 80x80x25mm; 102m3/h; 45.5dBA; ball bearing
Useful information
Supplier parameters
NomNr
PF80252B1-G99
Product ID
U-2321451
Additional functions
Autorestart
Cable length
0.315m
Current and power consumption tolerance
±15%
Current rating
0.155A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
102m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball bearing
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
45.5dBA
Operating temperature
-10...70°C
Operating voltage
10...27.6V
Power consumption
3.72W
Rotational rate/speed
4800rpm
Signal output
F type
Supply voltage
24V DC
Type of fan
DC
Brand
SUNON
Supplier's product code
PF80252B1-G99
