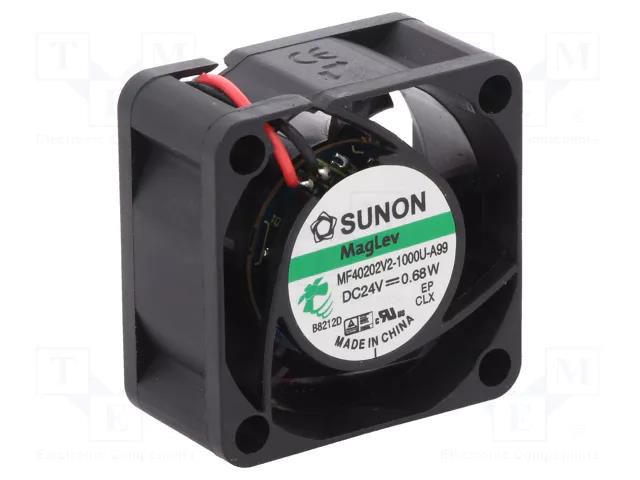

Fan: DC; axial; 24VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm SUNON
Product Code: MF40202V2-A99-A
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 24VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm
Useful information
Supplier parameters
NomNr
MF40202V2-A99-A
Additional functions
Autorestart
Cable length
0.305m
Current rating
25mA
Enclosure material
thermoplastic
Fan dimensions
40x40x20mm
Fan efficiency
13.01m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
21dBA
Operating temperature
-10...70°C
Operating voltage
8...27.6V
Power consumption
0.6W
Rotational rate/speed
6000rpm
Static pressure
4.21mm H<sub>2</sub>O
Supply voltage
24V DC
Type of fan
DC
Wire size
26AWG
Brand
SUNON
Supplier's product code
MF40202V2-A99-A
Product ID
U-256027
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
