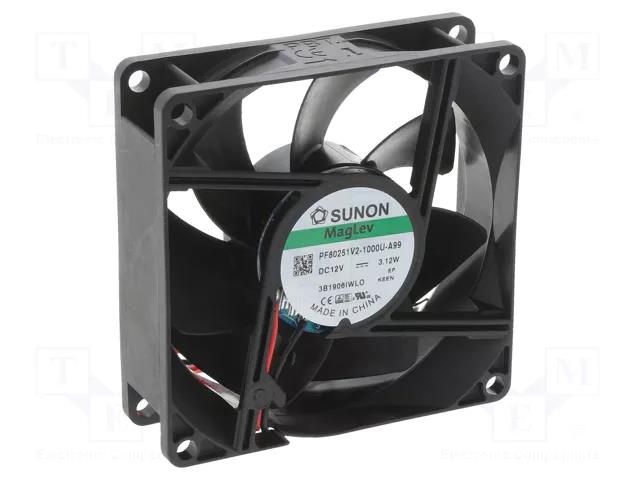

Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm SUNON
Product Code: PF80251V2-A99-A
Delivery terms
2024-08-20 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 769 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Fan: DC; axial; 12VDC; 80x80x25mm; 96.85m3/h; 43.1dBA; Vapo; 4500rpm
Useful information
Supplier parameters
NomNr
PF80251V2-A99-A
Additional functions
Autorestart
Cable length
0.315m
Current and power consumption tolerance
±15%
Current rating
0.24A
Enclosure material
thermoplastic
Fan dimensions
80x80x25mm
Fan efficiency
96.85m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Kind of Bearing
Vapo
Kind of fan
axial
Leads
lead x2
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
43.1dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V
Power consumption
3.12W
Rotational rate/speed
4500rpm
Static pressure
8.88mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
PF80251V2-A99-A
Product ID
U-286940
