DALI controller, 4 channel, TRIAC Phase cut, DIN , 100-240Vac, Sunricher

Product Code: SR-2303AC-4CH-DIN
Use the discount code!
no gallery
no gallery
Sunricher
More similar products
New!

Price range

AmountPrice with tax (pcs)
1+
124.23124.23
wholesale

Min. qty: 1

Unit: pcs

Total:

124.23

Price when purchased online

lemona shopPickup in department 1-5 b.d.

Available>10 pcs
Central Warehouse
Not availableNot available
Tallinn Office

home deliveryHome delivery 1-5 b.d.

Shipping parcelDelivery to DPD Pickup locations 1-5 b.d.


Delivery terms

lemona shop

Pickup in department

Pickup in department For free

Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m. When your order is ready for collection, we will inform you by SMS and e-mail.
IMPORTANT: The office will be closed on 10 January 2025 due to an inventory.

Quantity in shop

Available>10 pcs
Central Warehouse
Not availableNot available
Tallinn Office
home delivery

Home delivery

Home delivery

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Estonia please use www.lemona-electronics.eu to order.

Over €25.00

(Orders up to 1000 kgs)

For free

To €25.00

(Orders up to 1000 kgs)

€4.50

Shipping parcel

Delivery to DPD pickup locations

Delivery to DPD pickup locations

After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.

€3.50

Product description

Sunricher

4 Channels DALI Phase Dimmer
Features
  • In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
  • Built-in DALI-2 interface, DALI DT6 device
  • Match all DALI systems in the market
  • Safe and reliable full isolation design
  • DALI phase dimmer, trailing edge dimming
  • Supports resistive loads and capacitive loads
  • DALI signal input, DALI address can be set with buttons and displayed on the digital display
  • DALI address quantity can be set as 1/2/3/4 to control 4 channels load simultaneously or separately
  • 4 channels AC100-240V output
  • To dim and switch single color dimmable LED lamps, dimmable LED driver, traditional incandescent and halogen lights
  • Din rail installation, easy and fast
Tehcnical data
Input Voltage100-240VAC
Output Voltage 4x(100-240)VAC
Max. Load Current4x1.8A
Max. Load Power4x400W @ 230V; 4x200W @ 110V
DALI Consumption< 2mA
Waterproof gradeIP20

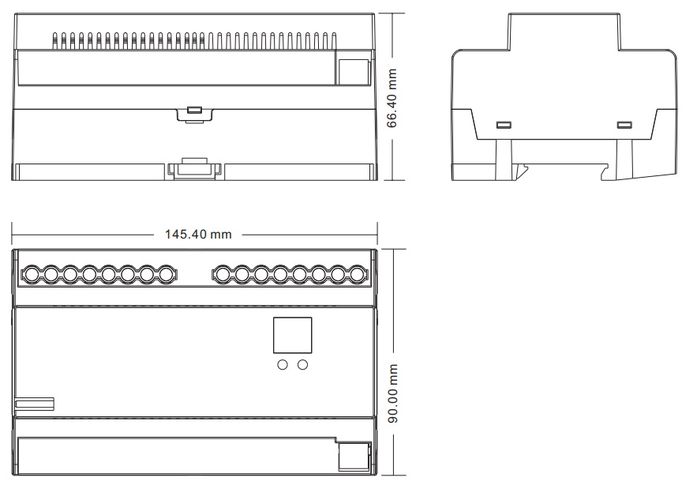

Size145.4mm x 90mm x 66.4mm
Compatible Load Types

Load Type

Maximum Load

Remarks

Dimmable LED lamps

1*200W @ 110V, 1*400W @ 230V
2*150W @ 110V, 2*300W @ 230V
3*125W @ 110V, 3*250W @ 230V
4*100W @ 110V, 4*200W @ 230V

Due to variety of LED lamp designs, maximum number of LED lamps per channel is further dependent on power factor result when connected to dimmer.

Dimmable LED drivers

1*200W @ 110V, 1*400W @ 230V
2*150W @ 110V, 2*300W @ 230V
3*125W @ 110V, 3*250W @ 230V
4*100W @ 110V, 4*200W @ 230V

Maximum permitted number of drivers per channel is 200W/400W divided by driver nameplate power rating.

Incandescent lighting, Halogen 240V lamps

1*400W @ 110V, 1*800W @ 230V
2*300W @ 110V, 2*600W @ 230V
3*250W @ 110V, 3*500W @ 230V
4*200W @ 110V, 4*400W @ 230V



Low voltage halogen lighting with electronic transformers

1*200W @ 110V, 1*400W @ 230V
2*150W @ 110V, 2*300W @ 230V
3*125W @ 110V, 3*250W @ 230V
4*100W @ 110V, 4*200W @ 230V




Useful information


Specifications

SKU
323124
Weight
0.54 kg.
Product code
SR-2303AC-4CH-DIN
Description generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligenceDescription generated by artificial intelligence

Experimental product description generated by artificial intelligence

Sunricher DALI Controller: 4-Channel TRIAC Phase Cut Dimmer

This 4-channel DALI phase dimmer from Sunricher is a versatile and reliable solution for controlling various lighting loads in your DALI system. It's designed for ease of installation and offers precise dimming capabilities.

Key Features and Benefits

  • 4-Channel Control: Independently control up to four lighting circuits.
  • TRIAC Phase Cut Dimming: Compatible with a wide range of dimmable LED lamps, LED drivers, incandescent, and halogen lighting.
  • DALI-2 Interface: Works seamlessly with most DALI systems.
  • DIN Rail Mounting: Easy and quick installation.
  • Digital Display and Manual Buttons: Simple address setting and monitoring.
  • Reliable Design: Built for safety and long-term performance.
  • Wide Input Voltage Range: Operates on 100-240VAC.

Applications

Ideal for various lighting control applications, including:

  • Commercial buildings
  • Residential settings
  • Industrial environments

Why Choose This Product?

This Sunricher DALI controller offers a combination of features that make it a superior choice for your lighting control needs:

  • Flexibility: Control multiple channels simultaneously or independently.
  • Compatibility: Works with a wide variety of lighting loads.
  • Ease of Use: Simple setup and operation.
  • Reliability: Built with high-quality components for long-lasting performance.

Technical Specifications

ParameterValue
Input Voltage100-240Vac
Channels4
Dimming TechnologyTRIAC Phase Cut
MountingDIN Rail

Note: Refer to the datasheet for detailed specifications and load compatibility information.


This description is generated using artificial intelligence (AI) and may differ from the actual product. Common AI errors may include:

  • Inaccurate product features: some technical specifications, colors, sizes or other parameters may be inaccurate or omitted.
  • Incorrect compatibility information: AI may provide incorrect information about the compatibility of products with other devices or systems.
  • Overly Optimistic Functions: in some cases functions may be provided whose product iš doesnt really have.
  • Name or Model Discrepancies: AI may misrepresent the product name or model.

If you notice inconsistencies or have questions about the description, please contact us before purchasing the product, please contact us by e-mail to you: [email protected].
