Product description
Brand

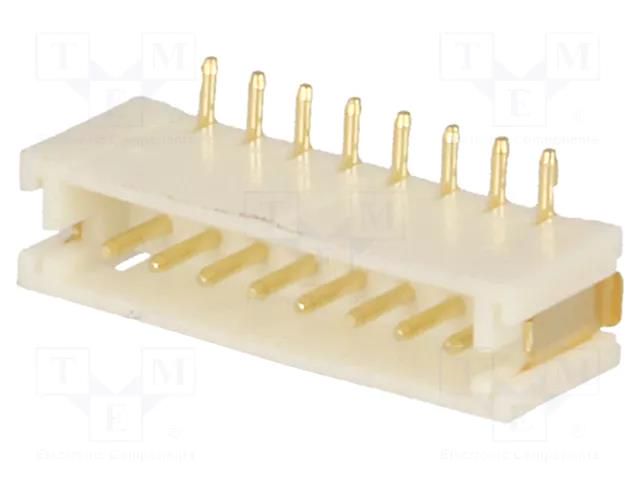

Socket; wire-board; male; 1.5mm; PIN: 8; SMT; 100V; 1A; tinned; 20mΩ JOINT TECH
Useful information
Specifications
Supplier product description
Socket; wire-board; male; 1.5mm; PIN: 8; SMT; 100V; 1A; tinned; 20mΩ
Useful information
Supplier parameters
NomNr
NX1501-08SMS
Body material
polyamide
Connector
socket
Connector pinout layout
1x8
Contact material
brass
Contact plating
tinned
Contacts pitch
1.5mm
Current rating
1A
Electrical mounting
SMT
Flammability rating
UL94V-0
Kind of connector
male
Manufacturer
JOINT TECH
Max. contact resistance
:20mΩ
Number of pins
8
Operating temperature
-25...85°C
Rated voltage
100V
Spatial orientation
vertical
Test voltage
0.5kV
Type of connector
wire-board
Brand
JOINT TECH
Supplier's product code
NX1501-08SMS
Product ID
U-277717
