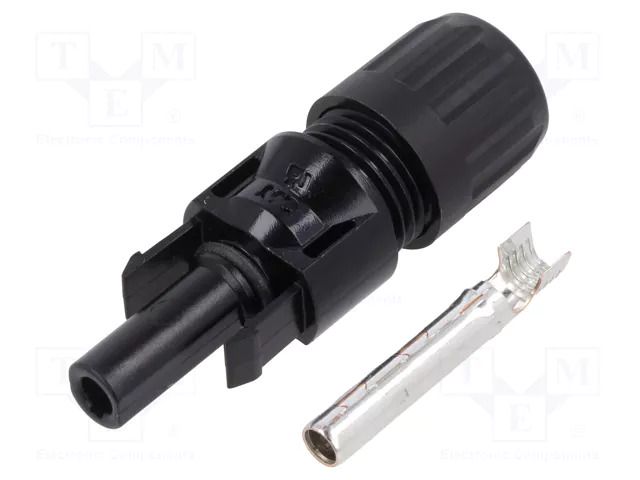

Connector: solar; female; straight; 4÷6mm2; crimped; photovoltaics STÄUBLI
Product Code: 32.0014P0001-UR
Brand
More similar products
Delivery terms
2024-07-17 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 356 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Connector: solar; female; straight; 4÷6mm2; crimped; photovoltaics
Useful information
Supplier parameters
Product code
32.0014P0001-UR
Application
photovoltaics
Cable external diameter
5...6mm
Connector
plug
Connector series
MC4
Current rating
39A
Electrical mounting
crimped
IP rating
IP65
Kind of connector
female
Manufacturer
STÄUBLI
Mechanical mounting
for cable
Operating temperature
-40...85°C
Rated voltage
1kV
Spatial orientation
straight
Type of connector
solar
Wire cross-section
4...6mm<sup>2</sup>
Wire size
12AWG...10AWG
Brand
STÄUBLI
Supplier's product code
32.0014P0001-UR
Product ID
U-3751704
