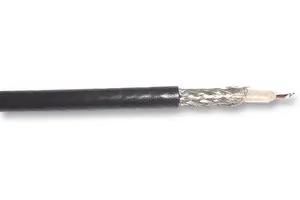

CABLE, COAX, RG174/U, BLACK, 305M
Product Code: 9174 BK001
Brand
More similar products
Delivery terms
2024-07-16 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 16 pcs | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Specifications
Supplier product description
CABLE, COAX, RG174/U, BLACK, 305M; Coaxial Cable Type:RG174; Wire Gauge:26AWG; Conductor Area CSA:0.14mm┬▓; Impedance:50ohm; Reel Length (Imperial):1000ft; Reel Length (Metric):304.8m; Jacket Colour:Black; Jacket Material:PVC; Conductor Material:Tinned Copper; No. of Max Strands x Strand Size:7 x 34AWG; External Diameter:2.54mm; Product Range:-; SVHC:No SVHC (15-Jan-2019); Attenuation @ 100MHz:2.8dB; Attenuation @ 10MHz:0.9dB; Attenuation @ 1GHz:8.5dB; Attenuation @ 200MHz:3.7dB; Attenuation @ 400MHz:17.5dB; Attenuation @ 50MHz:1.9dB; Capacitance per Metre:102pF/m; Coaxial Type:RG174/U; Conductor Make-up:7 / 0.16mm; Dielectric Insulation Diameter:1.52mm; Dielectric Material:Solid Polyethylene; Outer Diameter:2.54mm; Primary Screen material:Tinned Copper Braid; Secondary Insulation Colour:Black; Secondary Insulation Material:PVC; Wire Size:26AWG
Useful information
Supplier parameters
Product code
9174 BK001
Brand
ALPHA WIRE
Supplier's product code
1302765
Product ID
U-617405
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
