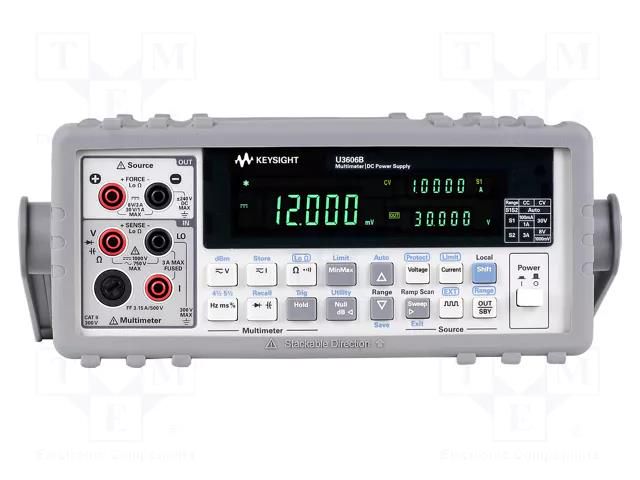

Benchtop multimeter with DC power supply; VFD; True RMS AC KEYSIGHT
Product Code: U3606B
Brand
More similar products
Delivery terms
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
Benchtop multimeter with DC power supply; VFD; True RMS AC
Useful information
Supplier parameters
Product code
U3606B
AC current measuring accuracy
±(0.5% + 0.1% range)
AC current measuring range
1A
AC voltage measuring accuracy
±(0.2% + 0.1% range)
AC voltage measuring range
750V
Capacitance measuring accuracy
±(1%+ 0.5% range)
Capacitance measuring range
10mF
Continuity test
acoustic indication
DC current measuring accuracy
±(0.05% + 0.005% range)
DC current measuring range
10mA
DC voltage measuring accuracy
±(0.012% + 0.005% range)
DC voltage measuring range
1kV
Dimensions
226x105x334mm
Diode test
0.83mA @1V
Display parameters
5,5 digit
Duty cycle factor
0.001...100%
Information
Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Interface
USB
Kind of display used
VFD
Kind of output connector
GPIB socket
Manufacturer
KEYSIGHT
Measurement
AC voltage
Measuring instrument features
HOLD function
Number of channels
1
Output current
0...1A
Output current 2
0...3A
Output current resolution
0.1mA
Output voltage
0...30V DC
Output voltage 2
0...8V DC
Output voltage resolution
1mV
Plug variant
EU
Pollution degree
2
Protection
anti-overload OPP
Related items
11059A
Resistance measuring accuracy
±(0.05%+0.005% range)
Resistance measuring range
10kΩ
Standard equipment
calibration certificate
Supply voltage
100...240V AC
Type of meter
benchtop multimeter with DC power supply
True effective value measurement
True RMS AC
Voltage (regulated) ripple and noise
≤2mVrms
Brand
KEYSIGHT
Supplier's product code
U3606B
Product ID
U-366516
