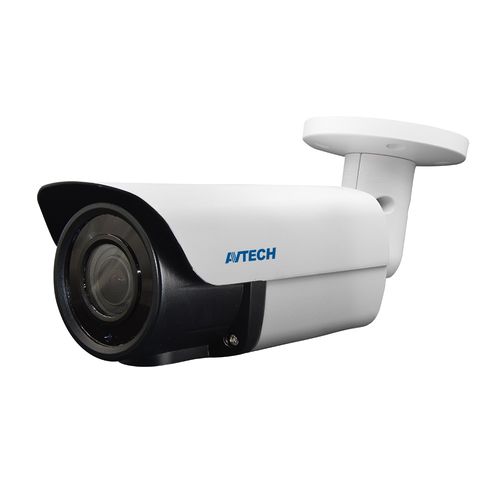

AVTECH bullet DGM5545GCATP (5MP, F2.8-12)
Product Code: KIPDGM5545GCATPF2.8-12
More similar products
Delivery terms
2024-11-28 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
AVTECH bullet DGM5545GCATP (5MP, F2.8-12)
Specifications
SKU
U-3065510
Product code
KIPDGM5545GCATPF2.8-12
Supplier product description
- 5MP
- IR up to 30m
- 2.8mm
- DWDR
- Microphone
- IP67, PoE
- General
- Image Sensor1/3” CMOS
- Max. Resolution2592 x 1944
- Lensf2.8 ~ 12mm / F1.6 ~ F2.2
- Viewing AngleTele 40° ~ Wide 117° (Diagonal)
- Min Illumination0.01 Lux (IR LED off), 0 Lux (IR LED on)
- Shutter SpeedAUTO
- IR LED20 units
- IR Effective DistanceUp to 30 meters
- Day / NightYES
- WDR ModeWDR
- RTC (real-time clock)YES
- CompressionH265 / H.264
- Video ResolutionMain Stream 5MP (2592x1944) / 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1080P) / 720P Sub Stream D1 / VGA / 640x360 / 480x360 / CIF
- Frame Rate5MP @ 25FPS
- Video ProfileHigh profile / Main profile / Base profile
- Multiple Video Streaming2 streams
- Bitrate Control32Kbps - 8Mbps, VBR/CBR
- Image EnhancementDWDR / HLC / 2D DNR / 3D DNR / AWB
- Day / Night SwitchAuto / Color / (B/W) / Timing
- Forced Anti-flickerYES
- White BalanceAuto / Manual
- Image OrientationFlip / Mirror
- Privacy MaskYES
- Text OverlayYES
- OSD TitleLocation / font size / text configurable; text input (English & Chinese characters) and image upload (BMP) supported
- Microphone built-inYES
- EncodingG.711-u / G.711-a
- Audio AdjustmentYES
- Detection ModeMotion / Human Detection
- Detection ScheduleYES
- Motion Detection Area1x1, 2x2, 3x2, 3x3, 4x3, 4x4, 8x8, 16x16, 22x18
- LAN PortRJ45 connector x 1 / 4KV lightning-proof
- LAN Speed100Mbps Based-T Ethernet
- Supported ProtocolsHTTP / RTSP / FTP / SMTP / DHCP / NTP / NFS / RTMP
- ONVIF CompatibleOnvif 17.06 compatible
- Number of Online Users6
- Remote AccessInternet Explorer 6 and above (recommended), Microsoft Edge & Google Chrome
- Web Interface LanguageEnglish, Traditional Chinese, Simplified Chinese, Russian, German, Italian, Turkish, Korean
- Operating Temperature-30℃ ~ 60℃
- Operating Humidity10%-90%RH
- POE IEEE802.3af
- Power Source (±10%)PoE / DC12V
- Power Consumption (±10%)< 8 W
- Net Weight (kg)1.05
- CasingIP67
- Optional Bracket / Junction BoxAVH145-WHKT
Supplier parameters
Category
Bullet Came
Supplier's product code
KIPDGM5545GCATPF2.8-12
Product ID
U-3065510
Product code
KIPDGM5545GCATPF2.8-12
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
