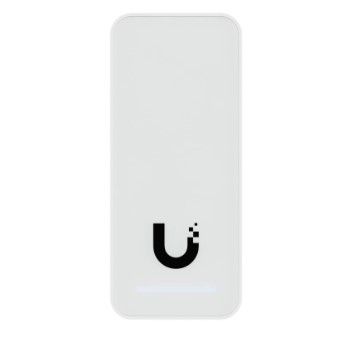

Access system scanner UBIQUITI UA-G2 (White)
Product Code: UBIQUAG2
Brand
More similar products
Delivery terms
2024-10-18 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Supplier product description
- Type: Access System Scanner
- Model: UBIQUITI UA-G2
- Color: White
- Power supply: PoE
- Network interface: 10/100 MbE RJ45 port
- Wireless technology: BLE 4.1
- NFC frequency: 13.56 MHz
- Protection class: IP55
- General
- Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
- Weight82 g (2.9 oz)
- Enclosure materialPolycarbonate, glass

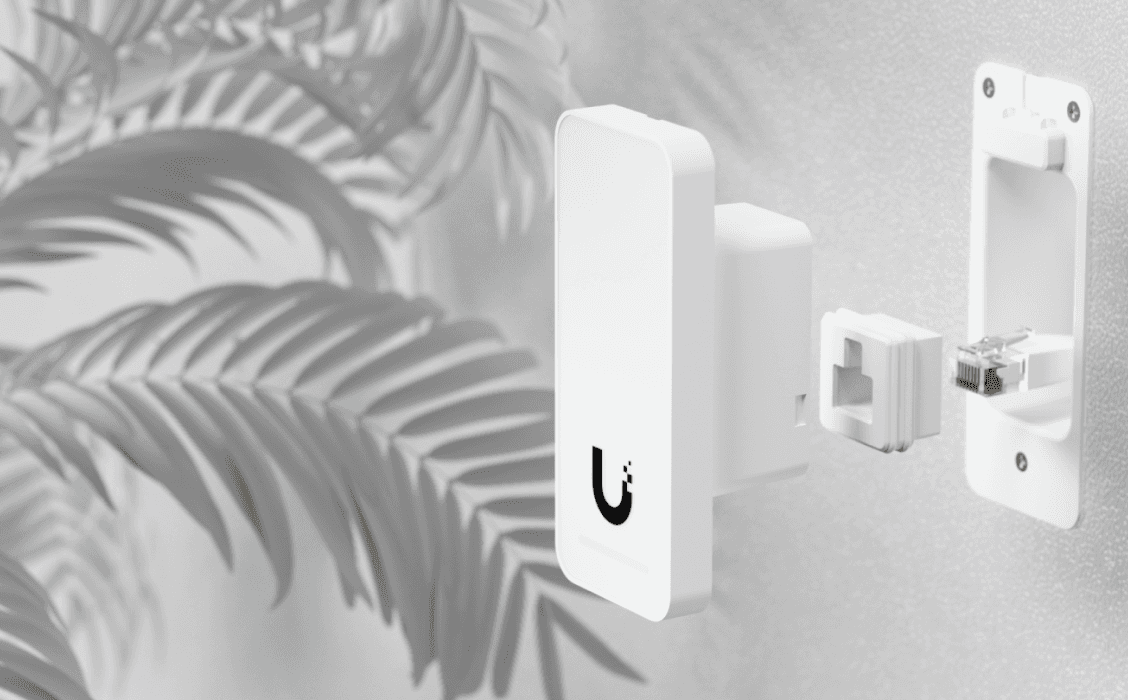

- MountingIn wall, gang box
- WeatherproofingIP55
- Networking interface(1) 10/100 MbE RJ45 port
- ConnectivityBLE 4.1
- Power methodPoE
- UL certificationsUL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU
- Supported voltage range48V DC
- Max. power consumption5W
- ESD/EMP protectionAir: ±15kV, contact: ±8kV
- SensorsProximity sensor
- Speaker(1) 8 ohm, 0.7W
- LEDsSteady white: Pending adoption, Steady blue: Adopted, Alternating white/blue: Firmware updating, Strobing red: Emergency lockdown, Steady green: Emergency evacuation, (2) Rapid flashing blue: NFC credential authenticated, (2) Rapid flashing red: NFC credential authentication failed, Breathing blue: Ready to register NFC cards
- Button(1) Factory-reset
- NFC frequency13.56 MHz
- NFC read range< 30 mm
- NFC standardsISO 14443A, 14443B, 15693
- NFC technologyNFC Tag 1,2,3,4,5, MIFARE Classic, MIFAREPlus, MIFARE Ultralight, MIFARE DESFire
- Operating environmentOutdoor use
- Ambient operating temperature-30 to 45° C (-22 to 113° F)
- Ambient operating humidity5 to 90% noncondensing
- Software informationThe software version can be checked at https://unifi.ui.com
- UL 294 levelDestructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
- UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294
- PoE cabling requirementsCat 5e minimum recommended, 26 AWG (patch cords), 24 AWG (horizontal/riser cable)
- CAN/ULC-60839-11-1 GradeGrade I
Supplier parameters
Product code
UBIQUAG2
Category
Ubiquiti Access Control
Brand
Ubiquiti
Supplier's product code
UBIQUAG2
Product ID
U-4199818
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
