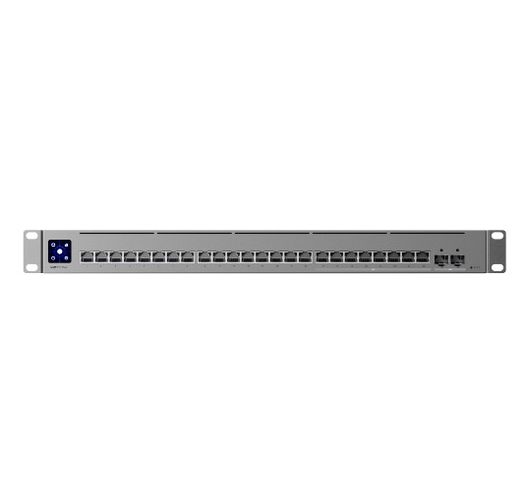

24-port switch Ubiquiti Unifi USW-Pro-Max-24-EU
Product Code: SWITCHUSWPROMAX24
Brand
More similar products
Delivery terms
2024-12-19 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
24-port switch Ubiquiti Unifi USW-Pro-Max-24-EU
Specifications
Supplier product description
- Type: Switch
- Model: Ubiquiti Unifi USW-Pro-Max-24-EU
- Number of ports: 24
- Connectors: 8 x 2.5 GbE RJ45, 16 x GbE RJ45, 2 x SFP+ 10G
- Transmission speed: 112 Gbps
- Transmission performance: 83.328 Mpps
- Screen: 1.3" touch screen LCM
- Energy consumption: 50W
- General
- Dimensions442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
- WeightWithout mounting brackets: 4.2 kg (9.3 lb), With mounting brackets: 4.3 kg (9.5 lb)
- Enclosure materialSGCC steel
- Management interfaceEthernet In-Band
- Networking interface(16) GbE RJ45 ports, (8) 1/2.5 GbE RJ45 ports, (2) 10G SFP+ ports
- Total non-blocking throughput56 Gbps
- Switching capacity112 Gbps
- Forwarding rate83.328 Mpps
- Power method(1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input
- Power supplyAC/DC, internal, 50W
- Supported voltage range100—240V AC
- Max. power consumption50W
- LCM display(1) 1.3" touchscreen
- ButtonFactory reset
- Ambient operating temperature-5 to 40° C (23 to 104° F)
- Ambient operating humidity10 to 90% noncondensing
- CertificationsCE, FCC, IC
- Switching FeaturesLayer 2 features IGMP snooping, STP/RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs
- Layer 3 featuresDHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs
- Etherlighting™Ethernet Locating, Speed/link, Native VLAN/network
- SFP+Locating, Speed/link, Native VLAN/network
Supplier parameters
Product code
SWITCHUSWPROMAX24
Category
Swit
Brand
Ubiquiti
Supplier's product code
SWITCHUSWPROMAX24
Product ID
U-4199807
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
