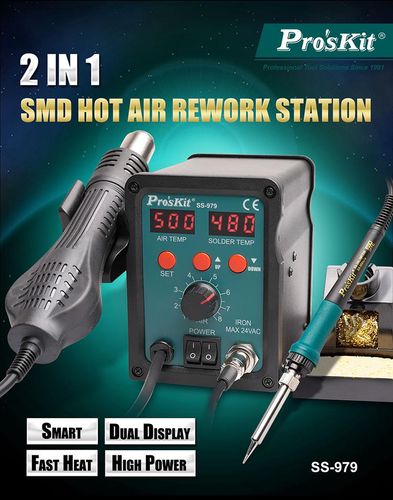

2 In 1 SMD Hot Air Rework Station
Product Code: SS-979B
New
-20% with promo code PRE20
Brand
More similar products
Pickup in department 1-5 b.d.
 >10 pcs | Central Warehouse |
 Not available | Tallinn Office |
Home delivery 1-5 b.d.
Delivery to DPD Pickup locations 1-5 b.d.
Delivery terms
Pickup in department
Pickup in department For free
Orders are processed and shipped on weekdays from 8:00 a.m. to 5:00 p.m.
When your order is ready for collection, we will inform you by SMS and e-mail.
Quantity in shop
| >10 pcs | Central Warehouse |
| Not available | Tallinn Office |
Home delivery
Home delivery
After handing over the goods to the courier, we will inform you by e-mail.
Over €25.00 (Orders up to 1000 kgs) | For free |
To €25.00 (Orders up to 1000 kgs) | €4.50 |
Delivery to DPD pickup locations
Delivery to DPD pickup locations
After handing over the goods to the courier, we will notify you by e-mail. Free delivery for orders over 25€.
€3.50
Product description
Weight
0 kg.
Brand
Features

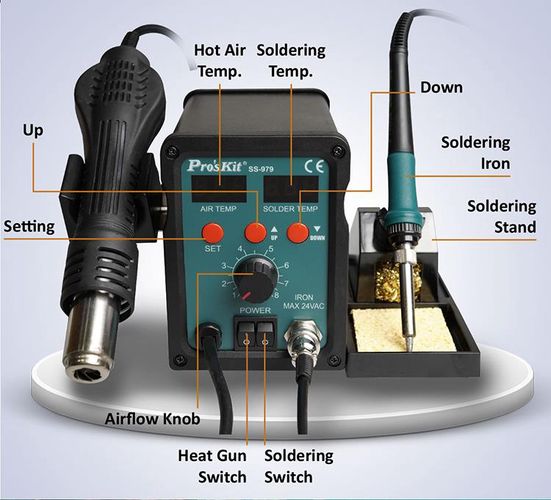

- 2 in 1, Hot Air & Soldering station

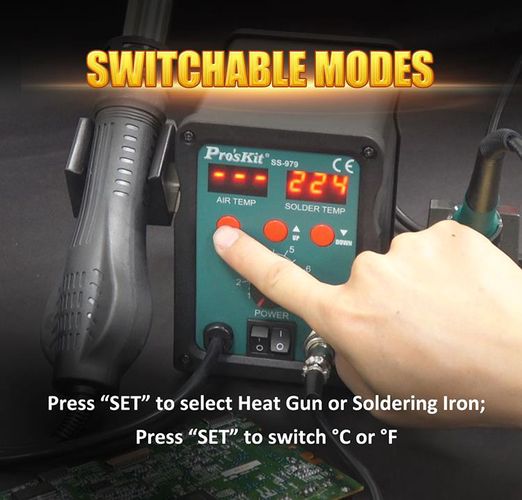

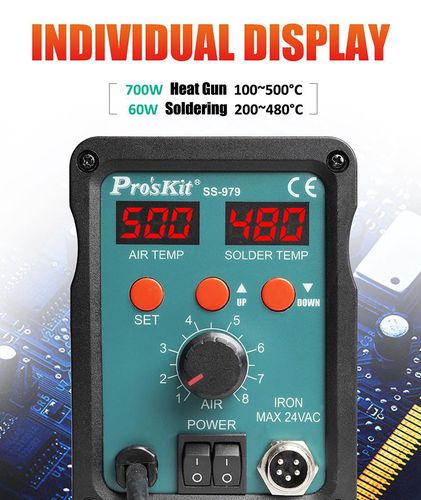

- Dual digital display - individual for hot air and soldering iron, individual power switch
- Turbo Fan with brushless motor - low noise and stabile air volume
- Gentle airflow - no damage to components
- Adjustable airflow

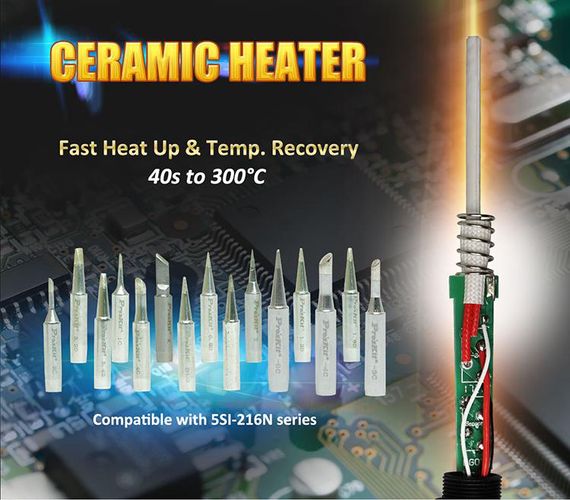

- Alumina ceramic heater - fast heating function
- Auto sleep function ensures longer service life - hot air temperature reduces automatically to 100oC
- Compatible with 5SI-216N series soldering iron tips

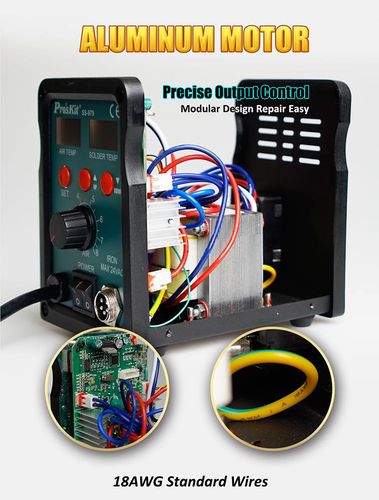

- Modular design - easy and fast repair of station

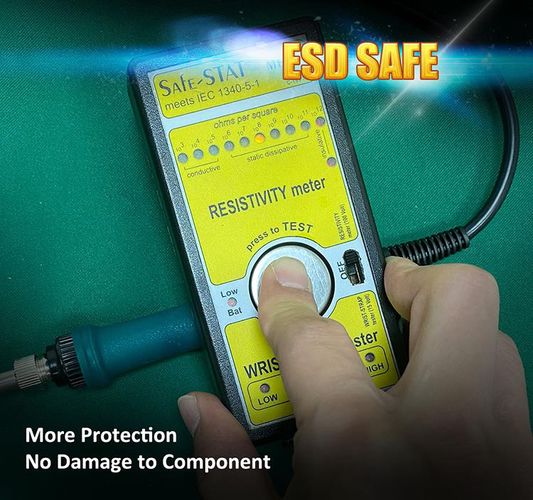

- ESD safe - no damage to components
- Heat resistant wires

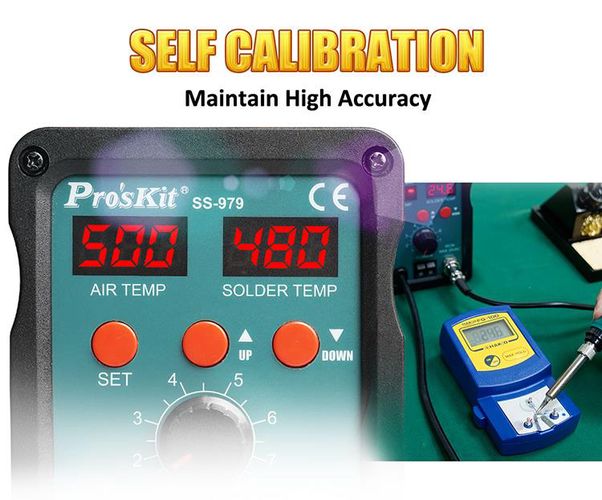

- Self calibration function - high soldering temperature accuracy

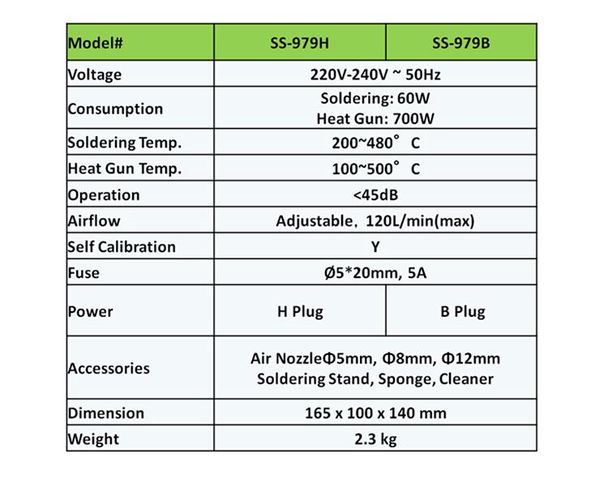

Technical data
| Power Input | 220-240V / 50Hz |
| Total Power Consumption | 760W |
| Hot Air Power | 700W |
| Soldering Power | 60W |
| Hot Air Temperature | 100-500°C |
| Soldering Temperature | 200-480°C |
| Hot Air Output Voltage | 220-240V |
| Soldering Output Voltage | 24V~ |
| Digital Display | LED |
| Hot Air Heating Element | Metal Heating Core |
| Soldering Heating Element | Alumina Ceramic Heater |
| Hot Air Volume | 120L/Min. (Max.) |
| Equipment Noise | <45dB |
| Fuse Type | 250V/5A |
| Certificate | CE & RoHS |
| Weight | 2.5kgs |

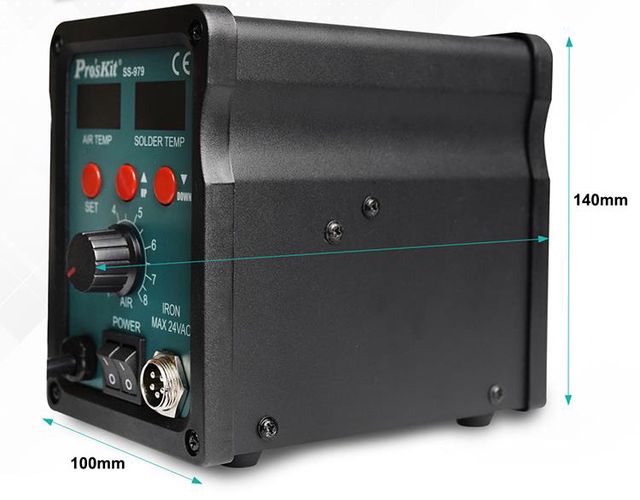

| Dimension (mm) | 170 x 170 x 140 (include holder) |
| Replacement Soldering Iron | 9SS-900N-SI |
| Replacement Soldering Heater | 9SS-900N-HT |
| Replacement Hot Air Gun | 5SS-979B-HG |

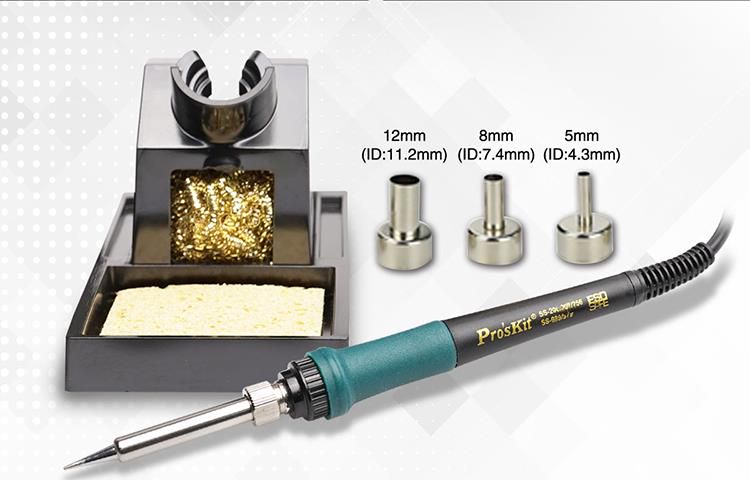

| Replacement Nozzle | 9SS-969-A1 (ID: 4.3mm) 9SS-969-A2 (ID: 7.4mm) 9SS-969-A3 (ID: 11.2mm) |
Useful information
Specifications
SKU
414611
Weight
0 kg.
Height, mm
140
Brand
Maximum temp ° C, °C
500
Minimum temp ° C, °C
100
Width, mm
100
Type of operation
Digital
Product code
SS-979B
Depth, mm
165
