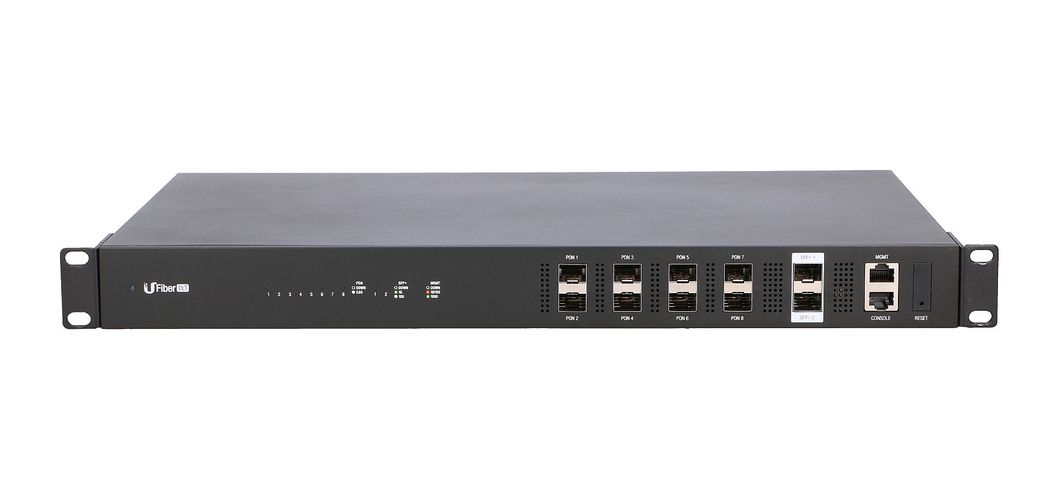

Ubiquiti UF-OLT | OLT | UFiber, 8x GPON SFP, 2x SFP+, UBIQUITI

UF-OLT network terminal from Ubiquiti - service for over 1000 clients

UFiber offers Internet and telecommunication service providers a cost-effective system for delivering fiber optics to Triple Play services (data, voice, IPTV/ VoD) at speeds up to 2,488 Gbps (downstream) and 1,244 Gbps (upstream).

UFiber OLT has eight GPON ports and simultaneously serves up to 1024 clients with physical links of up to 20 km. Two SFP+ ports provide 10 G uplink connectivity. OLT also provides flexible power supply options, with two power supply modules, which can be equipped with AC/ DC or DC/ DC power modules. One AC/DC module is included, while additional modules can be purchased separately.

Power supply flexibility

The energy-efficient UF-OLT offers two bays for modular power supplies. The first one contains an AC/DC power module. The second bay can accommodate an optional power supply module, either a backup AC/DC module or a DC/DC power module.

UNMS software - UniFi OS Console

UNMS is a comprehensive management controller with a graphical user interface that is easy to remember and operate. UNMS manages all registered UF-OLTs and all their UF-Nano clients.

Designed for installation in a rack

The metal UF-OLT enclosure, 1U high, enables convenient installation in a standard 19" rack.

Special features of UF-OLT

Special features of UF-OLT

• (8) GPON SFP ports, (2) SFP+ ports
• Simultaneous clients: 1024 ONU
• GPON range: up to 20 km connection
• GPON speeds: 2,488 Gbps Upstream (TX), 1,244 Gbps Downstream (RX)
• Wave lengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
• Maximum power consumption: 40 W
• Power method: 54VDC PSU module
• Can be mounted in 1U rack cabinets (optional)
