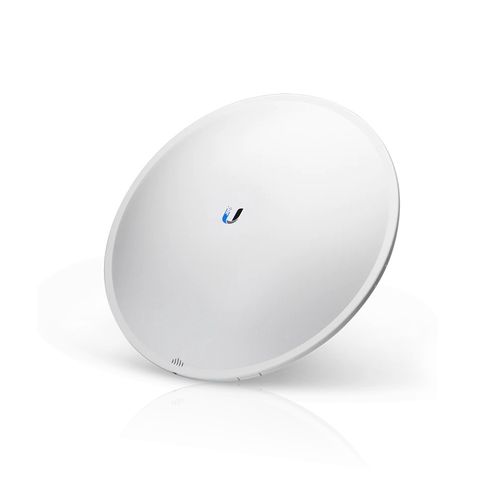

Ubiquiti PBE-5AC-500: the perfect radio system
PowerBeam devices are the most profitable due to their size. The excellent beam directionality of the PowerBeam devices provides the best performance in high noise environments. The airMAX ac technology makes PBE-5AC-500 devices achieve TCP/IP throughput of up to 450+ Mbps. The device starts up with PtP functionality and the 'client mode' function will be added with a future software update.
Integrated radio design
InnerFeed technology from Ubiquiti integrates the radio with the antenna power tube, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
A breakthrough in performance
airMAX ac products offer reduced latency, noise immunity, scalability and significantly improved performance.
Amazing Beam antenna performance
The airMAX Ubiquiti engine with a custom chipset significantly improves TDMA latency and network scalability. The PowerBeam ac shape factor has the highest gain due to its size. The excellent directionality of the PowerBeam ac beam provides the best performance in high noise environments.
Advanced software technology
Ubiquiti's airMAX technology has been proven in millions of implementations worldwide, demonstrating exceptional performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed band in multipoint networks.
Protective shield
PowerBeam ac PBE-5AC-500 contains a protective shield for the radio against external influences such as natural forces, difficult weather conditions.
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Operating frequency | 5 GHz |
| Antenna gain | 21dBi - 30dBi |
| Antenna gain level (max) | 27 |
| Antenna type | Directional antenna |
| Built-in processor | Yes |
| Certification | FCC, IC, CE |
| CPU frequency | 560 MHz |
| Depth | 315 |
| Device type | Client device |
| Dimensions (WxDxH) | 620 x 620 x 386 |
| Flash memory | 16 |
| Frequency band | 5 |
| Harmonized System (HS) code | 85177100 |
| Height | 525 |
| Internal memory | 128 |
| Internal memory type | DDR2 |
| LED indicators | LAN, Power, WLAN |
| Mounting | Pole |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -40 - 70 |
| Polarization | Dual polarization |
| Power consumption (max) | 8.5 |
| Processor frequency | 720 |
| Processor model | Atheros MIPS 74Kc |
| Product colour | White |
| RAM memory | 128MB |
| Survival wind speed | 96 |
| Sustainability certificates | RoHS |
| Type of device power supply | Passive PoE |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Weight | 3.15 |
| Width | 525 |
| Wind load | 264.6 |
