Kauba kirjeldus

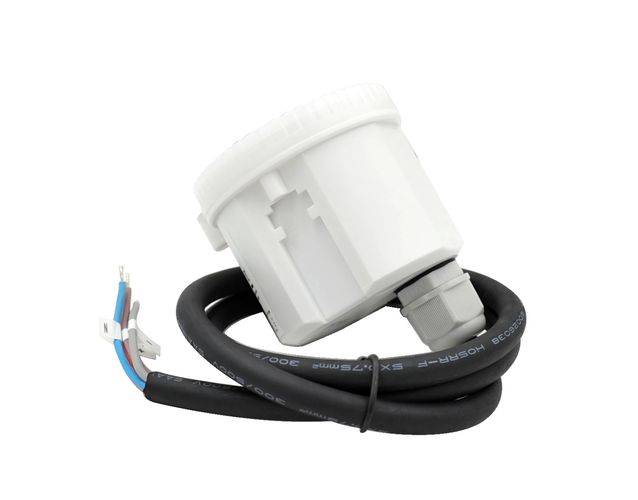

MERRYTEK Industrial Daylight Harvesting motion sensor, fixture clip
Tehnilised andmed
Tarnija toote kirjeldus
MERRYTEK Industrial Daylight Harvesting motion sensor, fixture clip A microwave motion sensor with a Daylight Harvesting function and step dimming, designed for industrial applications, especially in areas exposed to dust, dirt, and moisture. It allows for efficient reduction of electricity consumption in 1-10V lighting systems, perfectly suited for High Bay fixtures and linear lights (Tri Proof). It’s basic functions are: •Turning fixtures on/off based on detected motion •2- or 3-level dimming (stand-by function) using the DIM+/DIM buttons •Utilizing daylight with the Daylight Harvesting function •Sensitivity adjustment - low sensitivity allows for the sensor's installation directly under a metal ceiling or on metal light reflectors •A frequency of 5.8GHz ensures resistance to interference from other wireless networks (WiFi, BT, 5G, etc.) •5-year warranty. Main advantages: •Simple and intuitive installation •Easy and quick calibration using a remote or DIP switches. •After calibration, the device operates autonomously, generating savings without additional intervention. •Maximum installation height is up to 15 meters! •IP65 waterproof rating Recommended for fixtures such as: • Linear lighting (RANGER, FUSION) • High Bay (PHANTOM) • All lamps with a 1-10V system operating under elevated dust/moisture conditions
Tarnija toote parameetrid
Product code
MC054V-RC4-A
Product ID
U-3012759
Ambient temperature suitable for operation
`-35 ÷ 55
Daylight Sensor
5lux/15lux/30lux/50lux/100lux/150lux/disable
Detecting Area (Radius)
8m max.
GPC classification
10005412 - Czujniki świetlne/ ruchu/ dźwiękowe
GS1 unit
szt
HF System
5.8GHz±75Mhz, ISM wave band
Hold time
5s/30s/1min/3min/5min/10min/20min/30min
IP protection rating
65
Max. Mounting Height
15m
Maximum load rating
120V AC 4A electronic/magnetic ballast
Net content of the product
1
Operating Voltage
120/277V ac
Stand-by DIM level
10%/20%/30%/50%
Stand-by Period
0s/10s/1min/3min/5min/10min/30min/+∞
Standby power Psb
<1W (stand-by)
Status
Active (on sale)
Transmit power
<0.5mW
Warranty (years)
5
Brand
Merrytek
Supplier's product code
MC054V-RC4-A
