Kauba kirjeldus

LED line PRIME
LED line® UFO T-Series 100-277V 100W 15000LM 4000K 60° DIM

Tehnilised andmed

Laokood
U-2390701
Vöötkoodid
5901583244018
NomNr
244018

Tarnija toote kirjeldus

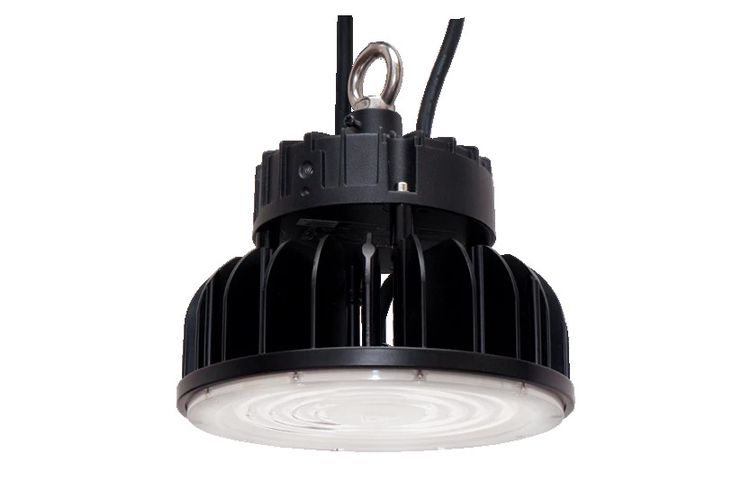

These High Bay luminaires are dedicated for professional illumination of industrial and production halls, warehouses, shopping and entertainment centres or sports halls. Massive, densely ribbed housing made of 100% cold-forged aluminum is used as a highly effective radiator which dissipates the heat produced by LEDs to the outside. Thanks to such effective heat dissipation system the luminaire’s lifespan is significantly extended.

This product’s power is 100 W and its light’s colour temperature is 4000 K. This item is equipped with diodes of the following type: SMD3030. This item achieves luminous efficacy of 150 lm/W. This item achieves a luminous flux of 15000 lm. Maximum concentration at work and lack of irritation is guaranteed thanks to the use of the most advanced Flicker Free™ Technology..  The LED's beam angle is 60 °.

The suitable voltage range for this product is: 100-277 AC. , which ensures strong protection against ingress of water and solid objects. This item is resistant to 5J energy impact - it has an impact protection rating of IK08. The item's high resistance to mechanical damage is guaranteed by the use of dedicated material which the diffuser/cover is made of -polycarbonate. This items is not compatible with any dimmers. TAK The compatible dimmer type: 1-10V

The Ra colour rendering index is 70. The lifespan of each single diode which this item is equipped with is over 50000. The power factor is PF> 0,95. The number of on/off cycles is 50000. The Energy class is A+.

The IEC protection class is: I.

Ambient temperature suitable for operation `-40 ÷ 45 °C. For indoor and outdoor use.

Tarnija toote parameetrid

NomNr
244018
Brand
LED line PRIME
Supplier's product code
244018
Product ID
U-2390701
Ambient temperature suitable for operation
`-40 ÷ 45
Angle for useful luminous flux (EPREL)
Narrow cone of 90 degrees
Beam angle
60
Beam angle in degrees (EPREL)
60
Chromaticity coordinates x i y (EPREL)
0.38|0.377
Colour
black
Colour consistency in McAdam ellipses
≤6
Colour of the light
White
Colour rendering index Ra
70
Colour-tuneable light source (EPREL)
No
Compatible dimmer type
1-10V
Connected light source (EPREL)
Yes
Correlated colour temperature
4000
Date of first placement on the market
2020-10-01
Dimmable function
Yes
Displacement factor Df
0.95
Energy class
A+
Energy efficiency class 2019/2015
D
EPREL ID
632058
Flicker Free
YES
Flicker metric PstLM
1
For indoor and outdoor use
YES
Frequency of the supply voltage
50/60Hz
Full box quantity
1
GPC classification
10005639 - Lighting - permanently mounted
GS1 unit
szt
Height
250
IEC protection class
I
IK protection rating
08
IP protection rating
65
Is the product equipped with an integrated light source? (EPREL)
No
Is this product a light source? (EPREL)
Yes
Lamp's diameter
200
Lamp's warm-up time to 60%
1
LED manufacturer
CREE
LED quantity
144
LED type
SMD3030
Lifespan
50000
Lifetime L70B50
50000
Luminous efficacy
150
Luminous flux
15000
Mains or non- mains light source (EPREL)
MLS
Master carton weight (kg)
31,5
Material (cover)
polycarbonate
Material (housing)
aluminum
Net content of the product
1
Non-directional or directional light source (EPREL)
DLS
Not dimmable
TAK
Number of on/off cycles
50000
On-mode power Pon (EPREL)
100
Peak luminous intensity (EPREL)
10442
Power Factor
0,95
Product code
244018
Product weight with packaging (g)
3150
R9 colour rendering index value (EPREL)
-8
Status
Active (on sale)
Stroboscopic effect metric SVM
0.4
Supply voltage range and voltage type
100-277 AC
Survival factor
0.9
The lumen maintenance factor
96
Total luminous flux (EPREL)
15000
Useful luminous flux Φuse (EPREL)
12000
Warranty (years)
5
Wattage
100
