Tarnija toote kirjeldus

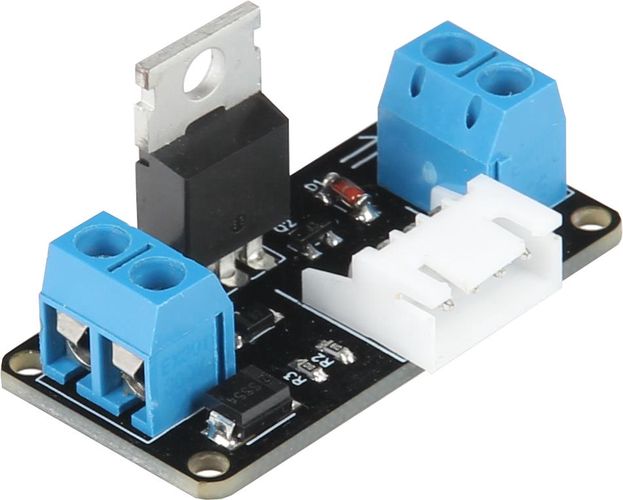

With this MOSFET, you can control a voltage of up to 36 Volts.
With the pulse width modulation, the rootmean-square voltage can be lowered (f.e. to dim a LED light).
With the pulse width modulation, the rootmean-square voltage can be lowered (f.e. to dim a LED light).
Technical data:
Model: IRF9540N
Compatible with: Arduino, Raspberry Pi, etc.
Control voltage: min. 2V
Max. voltage input: 36 V
Max. current input: 2 A
Interfaces: 2 x2 pin terminal blocks and 4 Pin JST connector
Pin Assignmen: 1. GND: Ground2. VCC: Voltage3. NC: Not connected4. SIG: Signal
Special Features: MOSFET draws current also over the SBC when no source voltage is availableRMS voltage can be reduced by PWM
Kasulik informatsioon
Tarnija toote parameetrid
NomNr
COM-MOSFET
Brand
Joy-iT
Supplier's product code
COM-MOSFET
Product ID
U-2614714
