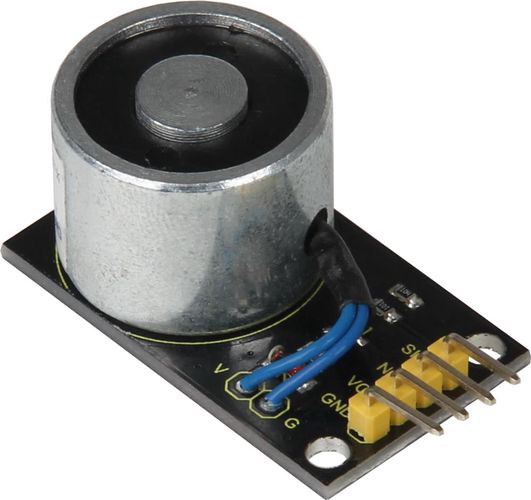

Joy-iT Electromagnet module with 25N adhesive force
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 5,00 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Kauba kirjeldus
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
At 5 V, it generates a force of approx. 25 N (approx. 2.5 kg).
Technical data:
Electromagnet: pure copper coil around an iron core
Adhesive force in mass: approx. 2,5 kg (at 5V)
Application areas: Robotic, Microcontroller, Automation projects
Compatible with: Raspberry Pi (with AD-converter), Arduino. etc.
Special features: low power consumption and rest magnetism, iron shell, strong adhesion
Voltage supply: 3.3 - 5 V
3 Pins: GND: Ground VCC: Voltage supply SIG: Signal
Control of magnet function: high and low level signal on signal pin
Mounting screw: M3 *6 Screw
Working current: < 350 mA @ 3.3 V < 500 mA @ 5 V
