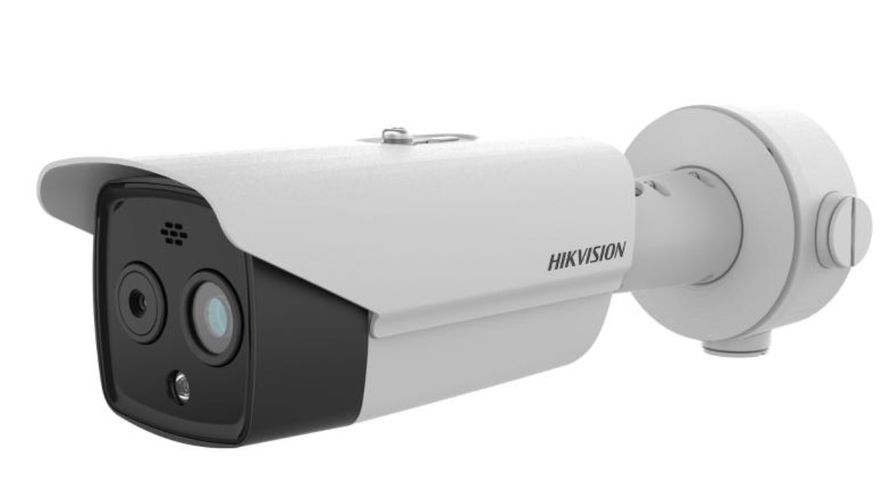

Hikvision thermal and optical bullet DS-2TD2628-3/QA
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Kauba kirjeldus
Tehnilised andmed
Tarnija toote kirjeldus
- Product name: IP camera DS-2TD2628-3/QA
- Type: BULLET
- Manufacturer: Hikvision
- Camera: THERMOVISOR, bi-spectral
- Thermal camera: 256x192 resolution, 9.7mm lens, working temperature -20°C - 150°C, temperature accuracy ±8°C
- Optical camera: 4MP resolution, 8mm lens
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution256 × 192
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 40 mK (25°C, F1.0)
- Focal Length3.6 mm
- IFOV3.33 mrad
- Field of View50.0° × 37.3° (H × V)
- Min. Focusing Distance0.5 m
- ApertureF1.0
- Digital Zoom×2, ×4
- Optical Module
- Image Sensor1/2.7" Progressive Scan CMOS
- Resolution2688 × 1520
- Min. Illumination0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
- Shutter Speed1 s to 1/100,000 s
- Focal Length4.3 mm
- Field of View84.0° × 43.1° (H × V)
- Aperture (Range)F1.6
- WDR120 dB
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Illuminator
- IR DistanceUp to 30 m
- IR Intensity and AngleAutomatically adjusted
- Audible and Visual Alarm
- White Light RangeUp to 30 m
- Visual AlarmYes. White light alarm with adjustable flashing frequencies
- Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
- General FunctionFire detection, smoking detection, sun-reflection filter
- Video and Audio
- Main Stream
Thermal:
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-stream
Thermal:
25 fps (704 × 576, 640 × 512, 320 × 240)
Optical:
50 Hz: 25 fps (704 × 576, 352 × 288)
60 Hz: 30 fps (704 × 480, 352 × 240)
- Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour,SFTP,SRTP,TLS
- Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
- Simultaneous Live ViewUp to 20 channels
- User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
- SecurityUser authentication (ID and Password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
- ClientiVMS-4200, Hik-Connect
- Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0 +, Firefox 52.0 +
- Interface
- Alarm Input2, alarm input (0-5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionLinkage Method Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
- Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
- Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- General
- Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
- Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
- Power Consumption
24 VAC ± 25%: 0.8 A, Max.8.5 W
12 VDC ± 25%: 0.7 A, Max.8.5 W
PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
- Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
- Protection Level
IP67 Standard
TVS 4000V lightning protection, surge protection, voltage transient protection
IK10-rated housing
- Dimensions321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
- Weight1550 g (3.41 lb)
- Detection Range Table/Smart Function Range
- VCA Range for Humans24 m
- VCA Range for Vehicles72 m
