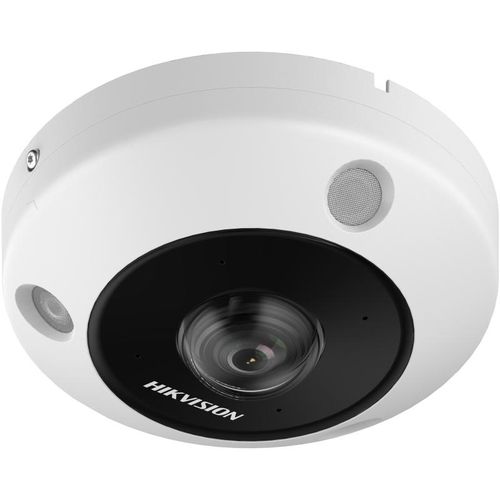

Hikvision fisheye DS-2CD63C5G1-IVS F1.29
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Kauba kirjeldus
Tehnilised andmed
Tarnija toote kirjeldus
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
- Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
- High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
- Panomorph lens RPL: 89VVT
- Water and dust resistant (IP67) and vandal resistant (IK10)
- Camera
- Image Sensor1/1.8" Progressive Scan CMOS
- Max. Resolution3504 × 3504
- Min. IlluminationColor: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Lens
- Lens TypeFixed focal lens, 1.29 mm
- Focal Length & FOV1.29 mm, horizontal FOV 180°, vertical FOV 180°
- Iris TypeFixed
- ApertureF2.2
- Depth of Field0.2 m to ∞
- DORI
- DORI
D: 27.9 m
O: 11.1 m
R: 5.6 m
I: 2.8 m
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 15 m
- Supplement Light Number3
- IR Wavelength850 nm
- Smart Supplement LightYes
- HEOP
- Open Resources
Memory: 60 MB,
Smart RAM: 800 MB,
eMMC: 2 GB
- Computing Power2 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK
- Deep Learning StructureCaffe,TensorFlow,PyTorch
- Programming LanguageC,C++
- Video
- Main Stream
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
180 Panorama View:
3072 × 2304, 2048 × 1536
180 Dual Channel Panorama View:
3072 × 1152
Panorama View:
3072 × 2304, 2048 × 1536
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 1600 × 1200
Fisheye + 3PTZ View:
camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280
camera 02/camera 03/camera 04: 1600 × 1200
4PTZ Fusion View:
3200 × 2400, 2048 × 1536
- Sub-Stream
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
720 × 720, 480 × 480
180 Panorama View:
640 × 480, 320 × 240
180 Dual Channel Panorama View:
640 × 480, 320 × 240
Panorama View:
640 × 360, 320 × 240
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Fisheye + 3PTZ View:
camera 01: 720 × 720
camera 02/camera 03/camera 04: 640 × 480, 320 × 240
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)4 fixed regions for each stream
- Fisheye Display
- Mount Type Support wall/table/ceiling mounting
- Decoding ModeSupport hardware decoding and software decoding
- Display Mode
20 display modes in total,
Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,
Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
- Simultaneous Live ViewUp to 20 channels
- API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Parameters SwitchYes
- Image Settingssaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- Privacy Mask8 programmable polygon privacy masks
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Interface
- Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Built-in MicrophoneYes, 4 built-in microphones
- Built-in SpeakerYes, 1 built-in speaker
- Audio
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 2 inputs, 2 outputs (max. 24 VDC, 1 A)
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Reset Key1 Reset Key
- Event
- Basic Event Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
- Deep Learning Function
- People Counting
Counts people entering, exiting and passing by separately (The data is stored in the flash.)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports up to 3 detection regions, and independent arming schedule and linkage method
- Queue Management
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
- Intersection Analysis
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways
- General
- Power
12 VDC ± 20%, 1 A, max. 11.5 W,two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 12.5 W
- MaterialMetal
- DimensionØ140.3 mm × 59.4 mm (Ø5.5" × 2.3")
- Package Dimension260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3")
- WeightApprox. 715 g (1.58 lb.)
- With Package WeightApprox. 1206 g (2.66 lb.)
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
- HeaterYes
- Cable Length0.31 m (1.02 ft.)
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
