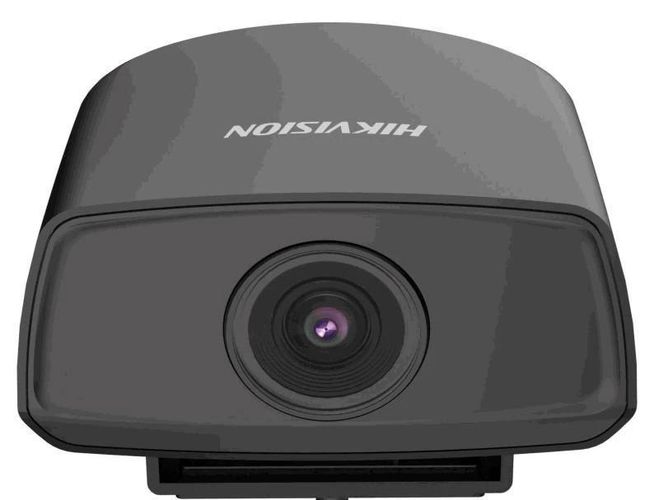

Hikvision dash camera DS-2XM6222G1-ID(AE) F2.8
Kättetoimetamise tähtajad
Kaup tellitakse tarnija laost. Kui tarnijal ei ole võimalik tarnida kaupa näidatud kuupäevani, informeerime teid epostitsi.
 Saadaval | Tarnija ladu |
Kulleriga koju
Kulleriga koju
Üle 25,00 € (Tellimused kuni 1000 kgs) | Tasuta |
25,00 €-le (Tellimused kuni 1000 kgs) | 4,50 € |
Kohaletoimetamine DPD pakiautomaatidele
Kohaletoimetamine DPD pakiautomaatidele
3,50 €
Tarnija toote kirjeldus
- High quality imaging with 2MP resolution
- 2.8/4/6 mm fixed lens
- Clear imaging against strong back light based on 120 dB WDR technology
- Water and dust resistant (IP68)
- Camera
- Shutter Speed1/3 s to 1/100,000 s
- P/N
PAL: 25fps
NTSC: 30fps
- Day & NightIR Cut Filter
- Angle AdjustmentPan: -20° to 0°, Tilt: -15° to 25°
- White Balance
Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;
Support manual/automatic white balance adjustment.
- Lens
- Focal Length2.8mm/4mm/6mm
- Focal Length & FOV
2.8mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
- Lens MountM12
- FocusManual focus
- Max. Aperture2.8/4/6mm : F1.6
- Illuminator
- Supplement Light TypeInfrared fill light lamp
- Smart Supplement LightSupport
- IR Wavelength850 nm
- IR RangeUp to 10 m
- Video
- Max. Resolution1920 x 1080
- Main Stream
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
- Sub-Stream
50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240)
- Third Stream
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
- Video Compression
Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265 ,H.264+, H.265+
- Video Bit Rate256 Kbps to 12 Mbps
- H.264 TypeBaseLine Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlConstant Bit Rate, Variable Bit Rate
- Stream TypeMain stream, sub stream, third stream
- Scalable Video Coding (SVC)
H.264 and H.265 encoding
- Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
- Audio
- Audio Compression G711U, G711A, G726, AAC, G722, PCM, AAC
- Audio Bit Rate64 Kbps
- Audio Sampling Rate16 kHz
- Environment Noise FilteringSupport
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, Email ,RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, ICMP 802.1X, QoS, IPv6, Bonjour, ISUP5.0
- Simultaneous Live ViewUp to 8 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- User ManagementUp to 16 users, 3 levels: Administrator, Operator and User
- Web BrowserIE8+, Chrome45+, Edge41+, Firefox45+
- Image
- Wide Dynamic Range (WDR)120 dB
- Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
- Day/Night SwitchDay/Night/Auto/Schedule
- SNR> 50 dB
- Image EnhancementBLC,HLC, 3D DNR
- Privacy MaskEnables configuration, and supports drawing of up to 4 areas
- Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
- Target CroppingSupport (only the third stream)
- Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment
- Interface
- Video OutputNot supported
- Ethernet Interface
-ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug
- SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Reset KeySupport
- Interface TypeInterpolate
- Event
- Linkage MethodUpload to FTP, notify monitoring center, send email, trigger recording
- Basic Event Motion detection, video tampering alarm
- Smart Event
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection, defocus detection
- General
- Product DimensionCamera: Φ 78.8 mm × 81.6mm x 63.8 mm (3.1″ × 3.2″ x 2.5″)
- Power
PoE: 0.30 A to 0.20 A, max: 7.5 W
DC: 0.83 A to 0.21 A, max: 7.5 W
- Package Dimension174 mm × 111 mm × 101mm (6.85″ × 4.37″ × 3.98″)
- Product WeightApprox. 330 g (0.7 lb.)
- Startup and Operating Conditions-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
- LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
- General FunctionAnti-flicker, heartbeat, mirror
- Software ResetSupport
- Power Supply
-ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V)
- Power Interface
-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: four-core M12 aviation plug, PoE power supply
- Cable Length50 cm
- Approval
- ClassClass B
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
- EnvironmentCE-RoHS (2011/65/EU);
- Electrical Safety ProtectionIP68 (IEC 60529-2013)
- Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
