Kauba kirjeldus

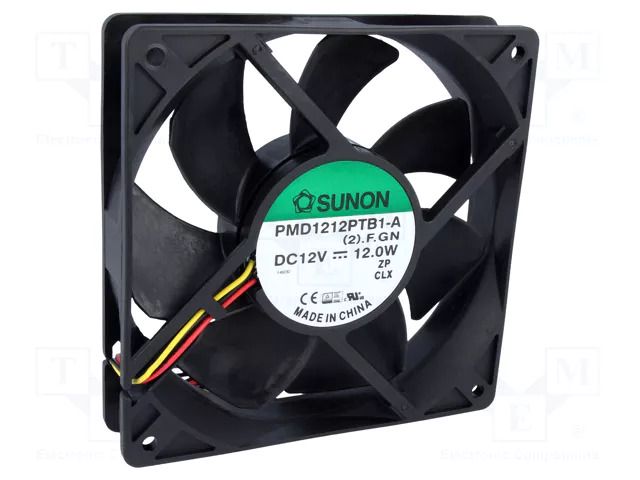

Fan: DC; axial; 12VDC; 120x120x25mm; 254.84m3/h; 54dBA; ball; 24AWG SUNON
Kasulik informatsioon
Tehnilised andmed
Tarnija toote kirjeldus
Fan: DC; axial; 12VDC; 120x120x25mm; 254.84m3/h; 54dBA; ball; 24AWG
Kasulik informatsioon
Tarnija toote parameetrid
Product code
PMD1212PTB1AF
Additional functions
Autorestart
Cable length
0.3m
Current and power consumption tolerance
±15%
Current rating
1A
Enclosure material
thermoplastic
Fan dimensions
120x120x25mm
Fan efficiency
254.84m<sup>3</sup>/h
Fan motor
brushless DC
Flammability rating
UL94V-0
Impeller material
thermoplastic
Insulation class
A
Kind of Bearing
ball
Kind of fan
axial
Leads
lead x3
Manufacturer
SUNON
Min. insulation resistance
10MΩ
Noise level
54dBA
Operating temperature
-10...70°C
Operating voltage
6...13.8V DC
Power consumption
12W
Rotational rate/speed
4500 (±10%)rpm
Signal output
F type
Static pressure
15.74mm H<sub>2</sub>O
Supply voltage
12V DC
Type of fan
DC
Wire size
24AWG
Brand
SUNON
Supplier's product code
PMD1212PTB1AF
Product ID
U-291741
