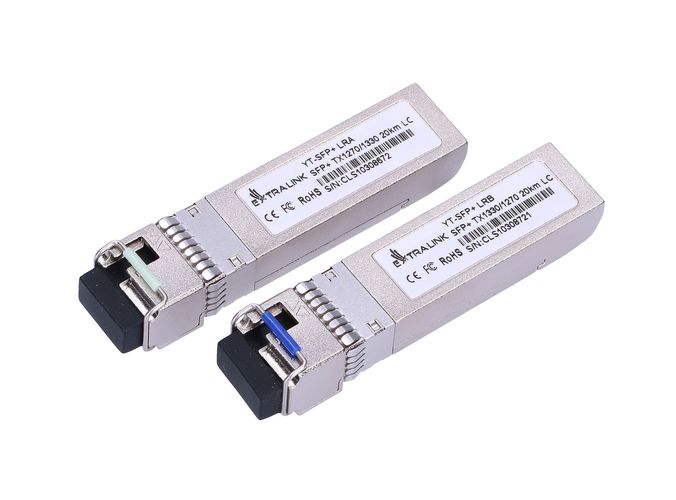

SFP+ 10G WDM 1270/1330NM SM 20KM - a set of economical modules
A set of two SFP single-mode inserts operates bidirectionally on one fiber on waves 1270/1330 nm, over a distance of up to 20 km. The electrical interface of the SFP 10G fiber optic module complies with the SFI electrical specifications. The receiver converts serial optical data at 10 Gbit/s into PECL/CML serial electrical data. The single-mode SFP insert is equipped with a two-wire serial I2C interface for serial identification, digital diagnostics and module control. The improved digital diagnostics monitoring interface allows real time access to the SFP optical module, allowing monitoring of received optical power, laser beam current, laser output power, etc. Single-mode SFP+ modules are dedicated to work with 10 Gbps Ethernet, routers and SONET/SDH switches, 10G/8.5G/4.25G/2.125G/1.0625G optical channels and other 10 Gbps optical links.
Special features
Special features
- Electrical interface compatible with SFF-8431
- Can be connected without interruption
- Data links up to 10.7 Gb/s
- LD transmitter DFB 1270/1330 nm
- PIN 1270/1330 nm Receiver
- Low energy consumption
- The device can be used to connect an SMF 20 km
- All-metal housing for excellent EMI performance
- Advanced firmware enables storage of client system encryption information in the transceiver
- Economical SFP+ solution to increase port density and bandwidth
| Output connector | LC |
| SFP module - port speed | 10 Gbps |
| Transmission distance | 4-20km |
| Certification | FCC |
| Fiber optic connector | LC |
| Fiber type | SM (Single-Mode) |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 |
| Maximum transfer distance | 20000 |
| Number of products included | 2 |
| Rx wavelength (min) | 1330 |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Sustainability certificates | CE, RoHS |
| Tx wavelength (min) | 1270 |
| Type of SFP duplex | Wavy (WDM) |
| Wavelength | 1270/1330 nm |
